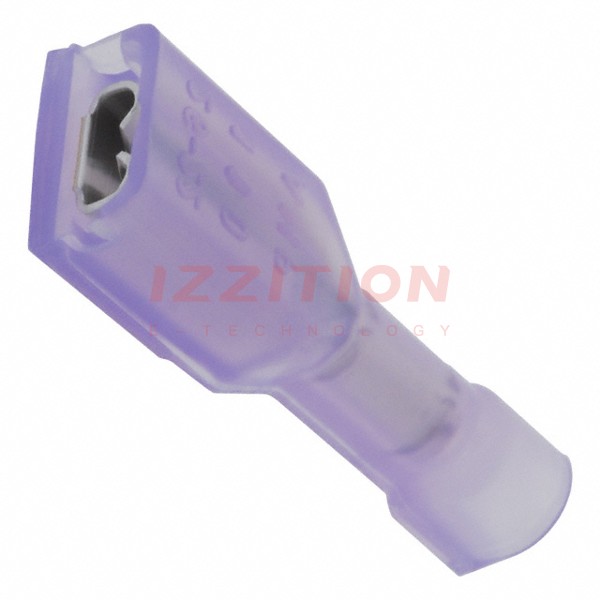

| Part Number | 7-520366-2 | 7-520365-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Standard | Standard |
| Gender | Female | Female |
| Tab Width | 0.110" (2.79mm), 0.125" (3.18mm) | 0.110" (2.79mm), 0.125" (3.18mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.020" (0.51mm) |
| Tab Length | - | - |
| Length - Overall | 0.735" (18.67mm) | 0.735" (18.67mm) |
| Termination | Crimp | Crimp |
| Wire Gauge | 22-26 AWG | 22-26 AWG |
| Insulation | Fully Insulated | Fully Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - |
| Color | Violet | Violet |
| Contact Material | Brass | Brass |
| Contact Finish | Tin | Tin |
