7-2204801-8
  • Share:

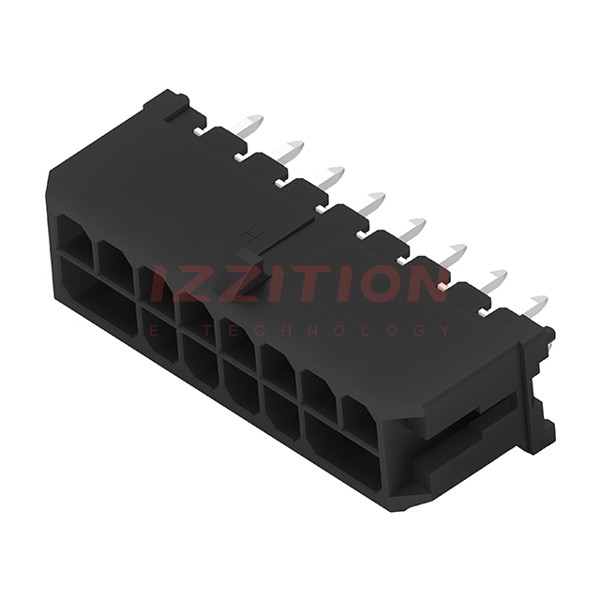

TE Connectivity AMP Connectors 7-2204801-8

Manufacturer No:
7-2204801-8
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
7-2204801-8 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 16POS 3MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.118" (3.00mm)
Number of Positions:16 (Power)
Number of Rows:2
Row Spacing - Mating:0.118" (3.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.125" (3.18mm)
Overall Contact Length:-
Insulation Height:0.390" (9.91mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Finish - Post:-
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:Board Guide
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:600V
0 Remaining View Similar

In Stock

$4.02
212

Please send RFQ , we will respond immediately.
