Please send RFQ , we will respond immediately.

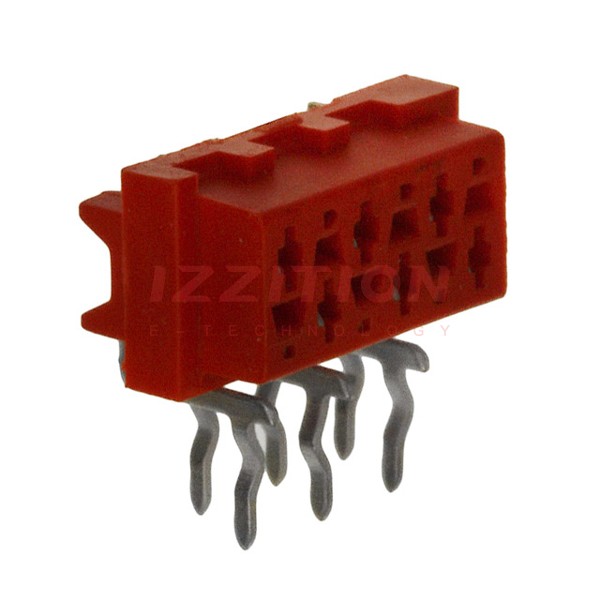

| Part Number | 7-215460-6 | 7-215460-8 | 7-215460-4 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle |
| Contact Type | Forked | Forked | Forked |
| Style | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable |
| Number of Positions | 6 | 8 | 4 |
| Number of Positions Loaded | All | All | All |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 2 | 2 | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Kinked Pin, Solder | Kinked Pin, Solder | Kinked Pin, Solder |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull |
| Contact Finish - Mating | Tin | Tin | Tin |
| Contact Finish Thickness - Mating | - | - | - |
| Insulation Color | Red | Red | Red |
| Insulation Height | 0.228" (5.80mm) | 0.228" (5.80mm) | 0.228" (5.80mm) |
| Contact Length - Post | 0.122" (3.10mm) | 0.122" (3.10mm) | 0.122" (3.10mm) |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin | Tin | Tin |
| Mated Stacking Heights | - | - | - |
| Ingress Protection | - | - | - |
| Features | - | - | - |
| Current Rating (Amps) | - | - | - |
| Voltage Rating | 100VDC | 100VDC | 100VDC |
