7-1971798-1
  • Share:

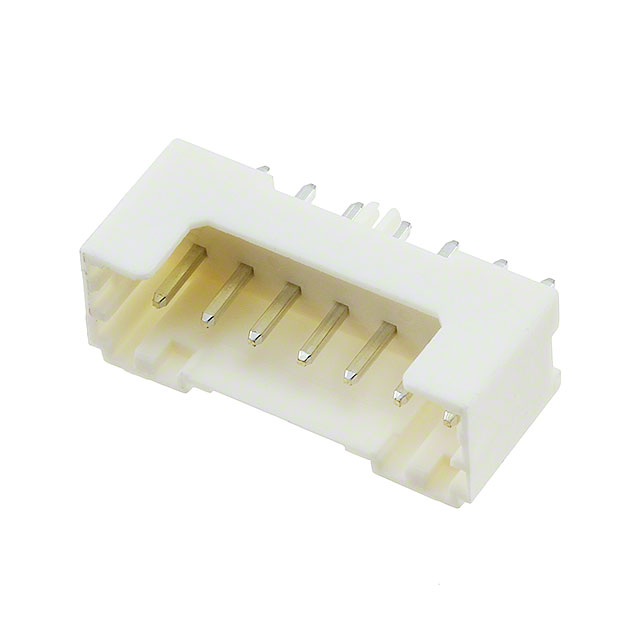

TE Connectivity AMP Connectors 7-1971798-1

Manufacturer No:
7-1971798-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
7-1971798-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 7POS 2.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.098" (2.50mm)
Number of Positions:7
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.346" (8.80mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:Board Guide
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:50V
0 Remaining View Similar

In Stock

$0.50
1,831

Please send RFQ , we will respond immediately.
