7-174820-7
  • Share:

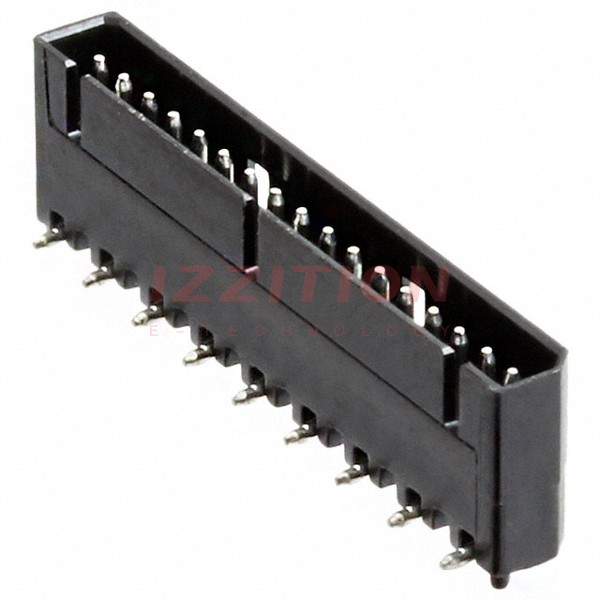

TE Connectivity AMP Connectors 7-174820-7

Manufacturer No:
7-174820-7
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
7-174820-7 Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD 17POS 1.25MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.049" (1.25mm)
Number of Positions:17
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.234" (5.95mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyphenylene Sulfide (PPS)
Features:Board Guide
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):0.5A
Voltage Rating:50V
0 Remaining View Similar

In Stock

$0.95
474

Please send RFQ , we will respond immediately.
