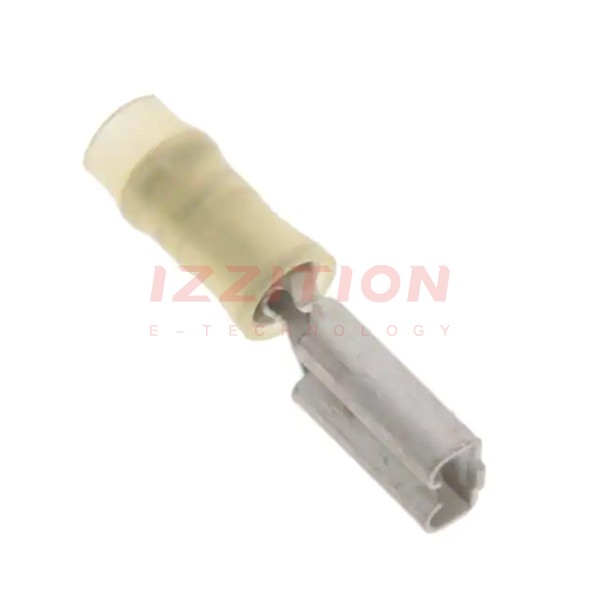

| Part Number | 7-1377174-7 | 7-1377174-9 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Standard | Standard |
| Gender | Female | Female |
| Tab Width | 0.110" (2.79mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.012" (0.30mm) |
| Tab Length | 0.248" (6.30mm) | 0.248" (6.30mm) |
| Length - Overall | 0.685" (17.40mm) | 0.780" (19.81mm) |
| Termination | Crimp | Crimp |
| Wire Gauge | 22-26 AWG | 16-22 AWG |
| Insulation | Non-Mating End Insulated | Non-Mating End Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - |
| Color | Yellow | Red |
| Contact Material | Brass | Brass |
| Contact Finish | Tin | Tin |
