7-104878-1
  • Share:

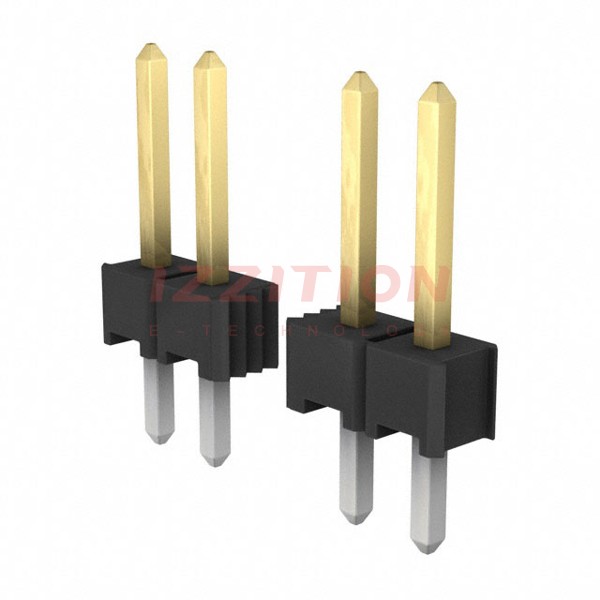

TE Connectivity AMP Connectors 7-104878-1

Manufacturer No:
7-104878-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
7-104878-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 6POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:6
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:5
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.230" (5.84mm)
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:0.440" (11.18mm)
Insulation Height:0.090" (2.29mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$0.66
1,382

Please send RFQ , we will respond immediately.
