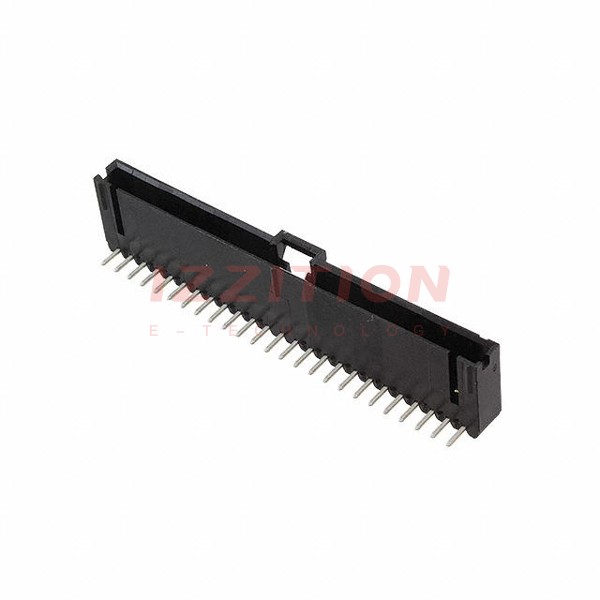

TE Connectivity AMP Connectors 7-103635-4

Manufacturer No:
7-103635-4
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
7-103635-4 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 25POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:25
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.230" (5.84mm)
Contact Length - Post:0.130" (3.30mm)
Overall Contact Length:-
Insulation Height:0.200" (5.08mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Thermoplastic
Features:Keying Slot
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
0 Remaining View Similar

In Stock

$3.15
112

Please send RFQ , we will respond immediately.
