7-103414-2
  • Share:

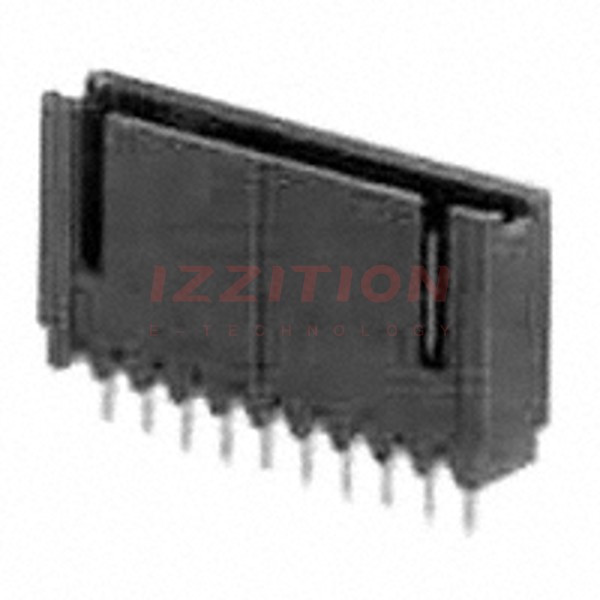

TE Connectivity AMP Connectors 7-103414-2

Manufacturer No:
7-103414-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
7-103414-2 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 24POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:24
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.240" (6.10mm)
Contact Length - Post:0.130" (3.30mm)
Overall Contact Length:0.589" (14.96mm)
Insulation Height:0.549" (13.94mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
0 Remaining View Similar

In Stock

$6.14
49

Please send RFQ , we will respond immediately.
