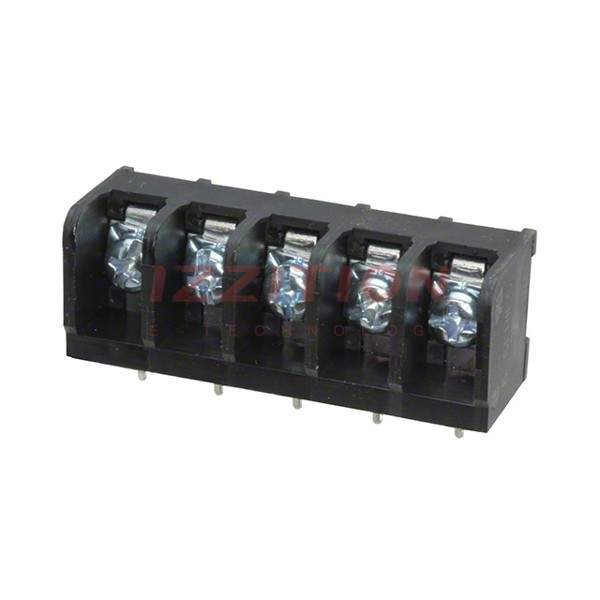

| Part Number | 6PCR-05-006 | 6PCV-05-006 | 6PCR-07-006 | 6PCR-08-006 | 6PCR-09-006 | 6PCR-05-008 | 6PCR-06-006 | 6PCR-02-006 | 6PCR-03-006 | 6PCR-04-006 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Block Type | Barrier Block | Barrier Block | Barrier Block | Barrier Block | Barrier Block | Barrier Block | Barrier Block | Barrier Block | Barrier Block | Barrier Block |
| Number of Circuits | 5 | 5 | 7 | 8 | 9 | 6 | 6 | 2 | 3 | 4 |
| Number of Wire Entries | 5 | 5 | 7 | 8 | 9 | 6 | 6 | 2 | 3 | 4 |
| Pitch | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.375" (9.53mm) |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Current Rating (Amps) | 25A | 25A | 25A | 25A | 25A | 25A | 25A | 25A | 25A | 25A |
| Voltage Rating | 300V | 300V | 300V | 300V | 300V | 300V | 300V | 300V | 300V | 300V |
| Wire Gauge | 12-22 AWG | 12-22 AWG | 12-22 AWG | 12-22 AWG | 12-22 AWG | 12-22 AWG | 12-22 AWG | 12-22 AWG | 12-22 AWG | 12-22 AWG |
| Top Termination | Screws with Captive Plate | Screws | Screws with Captive Plate | Screws with Captive Plate | Screws with Captive Plate | Screws with Captive Plate | Screws with Captive Plate | Screws with Captive Plate | Screws with Captive Plate | Screws with Captive Plate |
| Bottom Termination | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Barrier Type | 3 Wall (Tri) | 3 Wall (Tri) | 3 Wall (Tri) | 3 Wall (Tri) | 3 Wall (Tri) | 3 Wall (Tri) | 3 Wall (Tri) | 3 Wall (Tri) | 3 Wall (Tri) | 3 Wall (Tri) |
| Features | - | - | - | - | - | Flange | - | - | - | - |
| Color | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black |
