Please send RFQ , we will respond immediately.

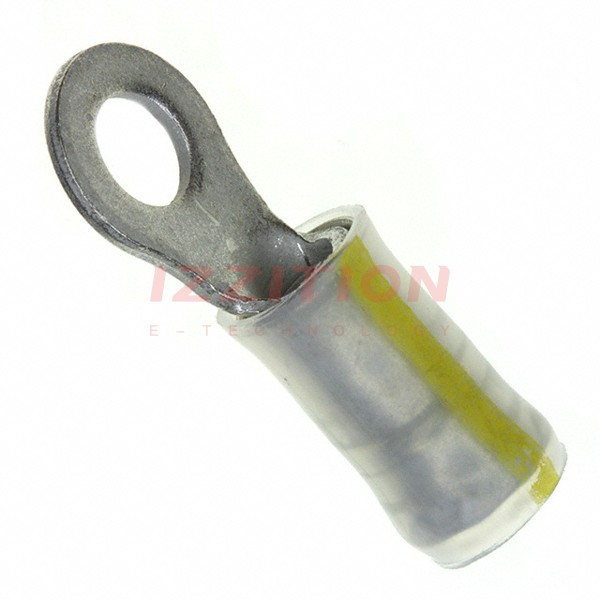

| Part Number | 696424-6 | 696424-8 | 696424-7 | 696420-6 | 696422-6 | 696423-6 | 696424-4 | 696424-5 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 10 Stud | 5/16 Stud | 1/4 Stud | 10 Stud | 10 Stud | 10 Stud | 6 Stud | 8 Stud |
| Thickness | 0.039" (0.99mm) | 0.039" (0.99mm) | 0.039" (0.99mm) | 0.027" (0.69mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.039" (0.99mm) | 0.039" (0.99mm) |
| Width - Outer Edges | 0.375" (9.53mm) | 0.531" (13.49mm) | 0.531" (13.49mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.375" (9.53mm) | 0.375" (9.53mm) |
| Length - Overall | 1.088" (27.64mm) | 1.327" (33.71mm) | 1.327" (33.71mm) | 0.866" (22.00mm) | 0.849" (21.56mm) | 0.849" (21.56mm) | 1.088" (27.64mm) | 1.088" (27.64mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 10-12 AWG | 10-12 AWG | 10-12 AWG | 24-26 AWG | 16-22 AWG | 14-16 AWG | 10-12 AWG | 10-12 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Radiation Resistant, Serrated Termination | Radiation Resistant, Serrated Termination | Radiation Resistant, Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Natural, Yellow Stripe | Natural, Yellow Stripe | Natural, Yellow Stripe | Natural | Natural, Red Stripe | Natural, Blue Stripe | Natural, Yellow Stripe | Natural, Yellow Stripe |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
