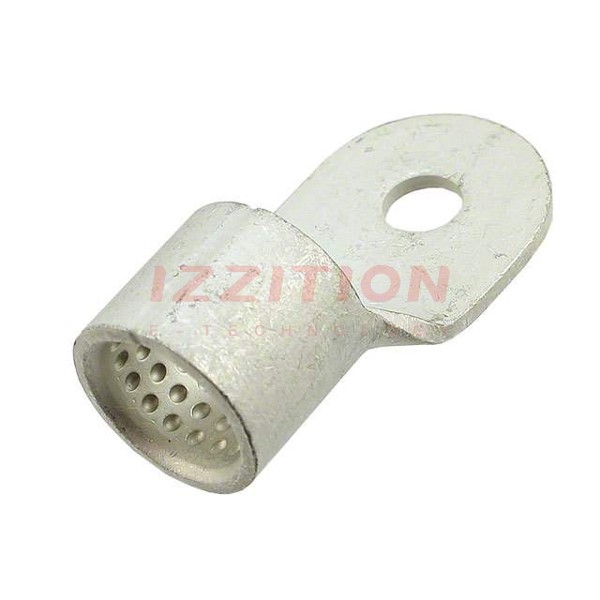

| Part Number | 696055-1 | 696050-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active |
| Terminal Type | D-Shaped | Circular |
| Stud/Tab Size | 5/16 Stud | 10 Stud |
| Thickness | 0.102" (2.59mm) | 0.048" (1.22mm) |
| Width - Outer Edges | 1.087" (27.61mm) | 0.406" (10.31mm) |
| Length - Overall | 2.178" (55.32mm) | 1.390" (35.31mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp |
| Wire Gauge | 4/0 AWG | 8 AWG |
| Insulation | Non-Insulated | Insulated |
| Features | Brazed Seam, Serrated Termination | Serrated Termination |
| Color | - | Red |
| Contact Material | Copper | Copper |
| Contact Finish | Tin | Tin |
