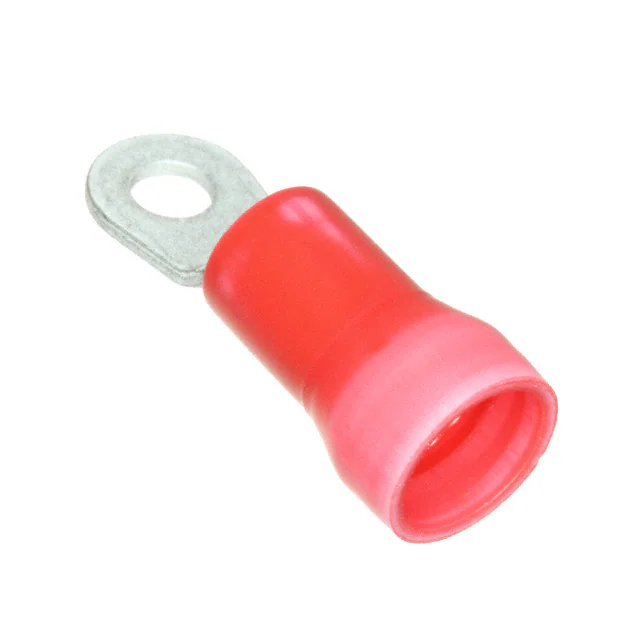

| Part Number | 696050-1 | 696650-1 | 696050-2 | 696055-1 | 696020-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete | Active |
| Terminal Type | Circular | Flat Sided | Circular | D-Shaped | Circular |
| Stud/Tab Size | 10 Stud | 3/8 Stud | 10 Stud | 5/16 Stud | 6 Stud |
| Thickness | 0.048" (1.22mm) | 0.080" (2.03mm) | 0.048" (1.22mm) | 0.102" (2.59mm) | 0.040" (1.02mm) |
| Width - Outer Edges | 0.406" (10.31mm) | 0.926" (23.52mm) | 0.406" (10.31mm) | 1.087" (27.61mm) | 0.375" (9.53mm) |
| Length - Overall | 1.390" (35.31mm) | 1.930" (49.02mm) | 1.390" (35.31mm) | 2.178" (55.32mm) | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 8 AWG | 2/0 AWG | 8 AWG | 4/0 AWG | 10-12 AWG |
| Insulation | Insulated | Non-Insulated | Insulated | Non-Insulated | Insulated |
| Features | Serrated Termination | Heat Shrink Tubing | Serrated Termination | Brazed Seam, Serrated Termination | Serrated Termination |
| Color | Red | - | Red | - | Yellow |
| Contact Material | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Nickel | Tin | Tin | Tin |
