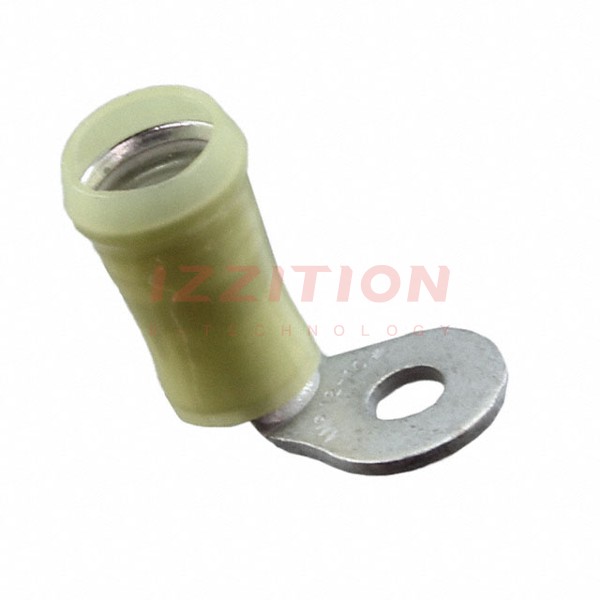

| Part Number | 696020-1 | 696050-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Circular | Circular |
| Stud/Tab Size | 6 Stud | 10 Stud |
| Thickness | 0.040" (1.02mm) | 0.048" (1.22mm) |
| Width - Outer Edges | 0.375" (9.53mm) | 0.406" (10.31mm) |
| Length - Overall | - | 1.390" (35.31mm) |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) |
| Termination | Crimp | Crimp |
| Wire Gauge | 10-12 AWG | 8 AWG |
| Insulation | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination |
| Color | Yellow | Red |
| Contact Material | Copper | Copper |
| Contact Finish | Tin | Tin |
