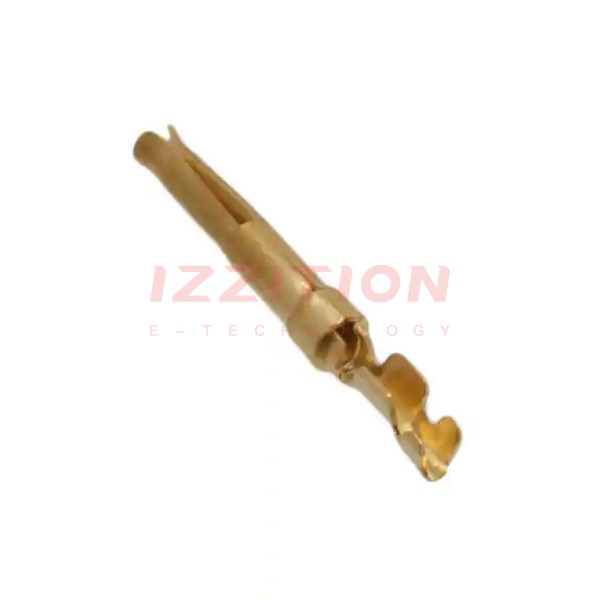

| Part Number | 66505-3 | 66506-3 | 66507-3 | 66505-4 | 66505-9 | 66565-3 | 66504-3 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Stamped | Stamped | Stamped | Stamped | Stamped | - | Stamped |
| Pin or Socket | Socket | Pin | Pin | Socket | Socket | Socket | Socket |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 24-28 AWG | 20-24 AWG | 24-28 AWG | 24-28 AWG | 24-28 AWG | 20-24 AWG | 20-24 AWG |
| Contact Material | Phosphor Bronze | Brass | Brass | Phosphor Bronze | Phosphor Bronze | Brass | Phosphor Bronze |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | Flash | 30.0µin (0.76µm) | 15.0µin (0.38µm) | 30.0µin (0.76µm) |
