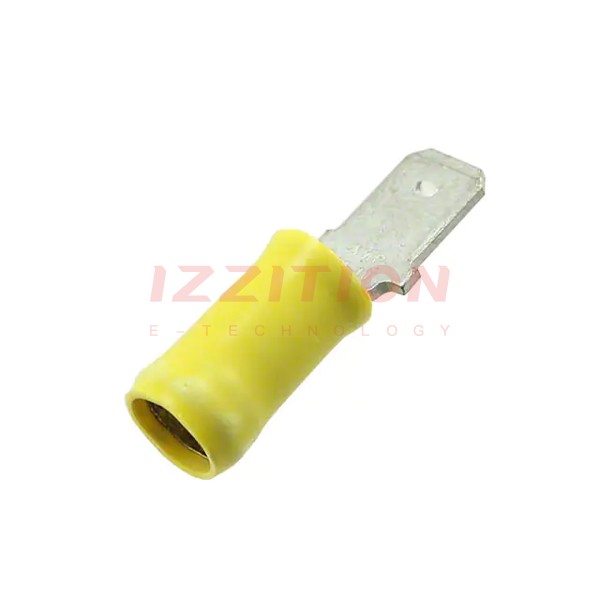

| Part Number | 66025-4 | 66025-6 | 66023-4 | 66024-4 | 66025-2 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard |
| Gender | Male | Male | Male | Male | Male |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.039" (0.99mm) | 0.039" (0.99mm) | 0.031" (0.79mm) | 0.032" (0.81mm) | 0.039" (0.99mm) |
| Tab Length | - | - | - | - | - |
| Length - Overall | 1.100" (27.94mm) | 1.100" (27.94mm) | 0.910" (23.11mm) | 0.991" (25.17mm) | 1.100" (27.94mm) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 10-12 AWG | 10-12 AWG | 16-22 AWG | 14-16 AWG | 10-12 AWG |
| Insulation | Non-Mating End Insulated | Non-Mating End Insulated | Non-Mating End Insulated | Non-Mating End Insulated | Non-Mating End Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - | - |
| Color | Yellow | Yellow | Red | Blue | Yellow |
| Contact Material | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin |
