Please send RFQ , we will respond immediately.

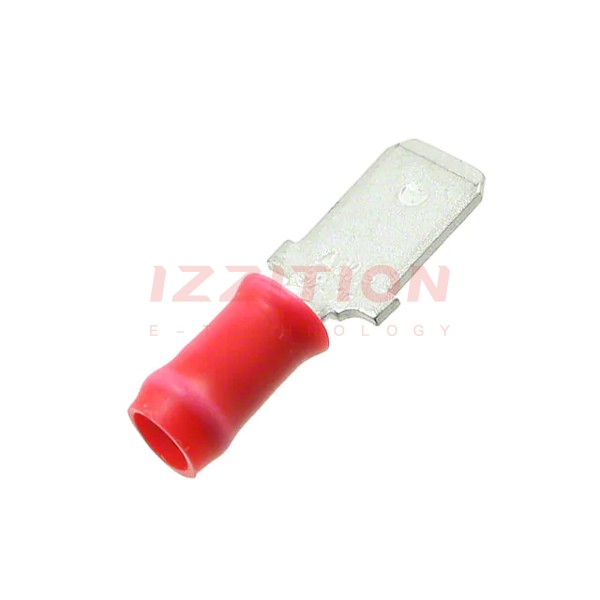

| Part Number | 66023-2 | 66025-2 | 66023-4 | 66024-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard |
| Gender | Male | Male | Male | Male |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.039" (0.99mm) | 0.031" (0.79mm) | 0.032" (0.81mm) |
| Tab Length | - | - | - | - |
| Length - Overall | 0.910" (23.11mm) | 1.100" (27.94mm) | 0.910" (23.11mm) | 0.991" (25.17mm) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 10-12 AWG | 16-22 AWG | 14-16 AWG |
| Insulation | Non-Mating End Insulated | Non-Mating End Insulated | Non-Mating End Insulated | Non-Mating End Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - |
| Color | Red | Yellow | Red | Blue |
| Contact Material | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin |
