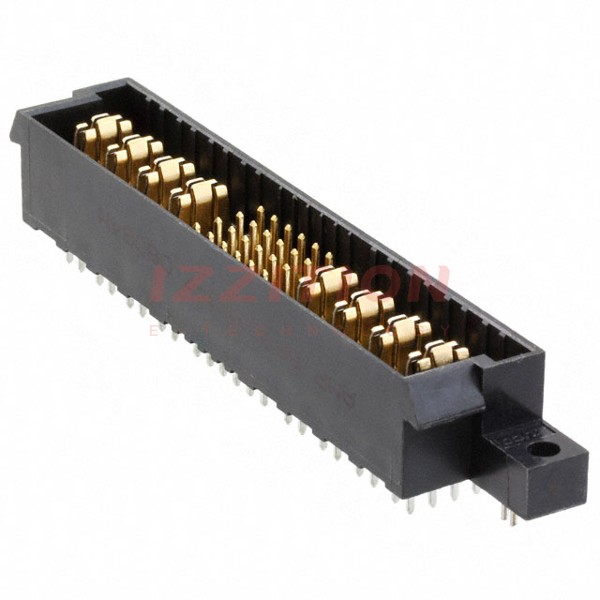

| Part Number | 6600383-7 | 6600333-7 | 6600383-1 | 6600383-6 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Usage | - | - | - | - |
| Connector Type | Header, Male Pins and Blades | Header, Male Pins | Header, Male Pins and Blades | Header, Male Pins and Blades |
| Connector Style | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam |
| Number of Positions | 32 | 22 | 44 | 30 |
| Number of Positions Loaded | All | All | All | All |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 4 | 4 | 4 | 4 |
| Number of Columns | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | 24 Signal, 8 Power | 16 Signal, 6 Power | 32 Signal, 12 Power | 24 Signal, 6 Power |
| Features | Board Lock | Board Lock, Mating Guide | Board Lock | Board Lock |
| Contact Finish | Gold | - | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | - | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | Black | Black | Black |
