Please send RFQ , we will respond immediately.

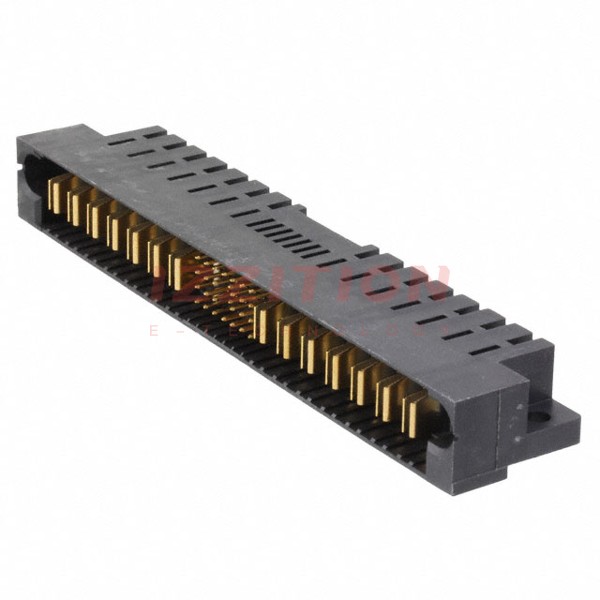

| Part Number | 6600132-5 | 6600112-5 | 6600132-4 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete |
| Connector Usage | - | - | - |
| Connector Type | Header, Male Pins and Blades | Header, Male Pins and Blades | Header, Male Pins and Blades |
| Connector Style | Multi-Beam | Multi-Beam | Multi-Beam |
| Number of Positions | 42 | 28 | 26 |
| Number of Positions Loaded | All | All | All |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 4 | 4 | 4 |
| Number of Columns | - | - | - |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder |
| Contact Layout, Typical | 28 Signal, 14 Power | 16 Signal, 12 Power | 24 Signal, 2 Power |
| Features | Board Lock, Mating Guide | Mating Guide | Board Lock, Mating Guide |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | - | Black |
