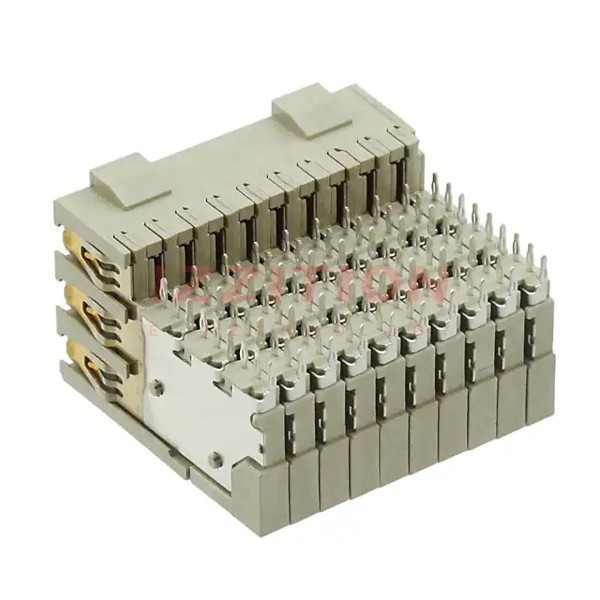

| Part Number | 6469081-1 | 6469083-1 | 6469085-1 | 6469081-2 | 6469001-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Connector Usage | Daughtercard | Backplane | Backplane | - | Daughtercard |
| Connector Type | Receptacle, Female Sockets | Header, Male Pins and Blades | Header, Male Pins and Blades | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Connector Style | High Speed | High Speed | High Speed | - | High Speed |
| Number of Positions | 60 | 60 | 90 | 60 | 120 |
| Number of Positions Loaded | All | All | All | All | All |
| Pitch | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Number of Rows | 6 | 6 | 6 | 6 | 8 |
| Number of Columns | 10 | 10 | 10 | - | 10 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Through Hole | Through Hole | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | - | - | 60 Signal, 30 Ground | - | 80 Single Signal, 40 Ground |
| Features | - | - | - | - | - |
| Contact Finish | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 50.0µin (1.27µm) | 30.0µin (0.76µm) |
| Color | - | - | - | - | - |
