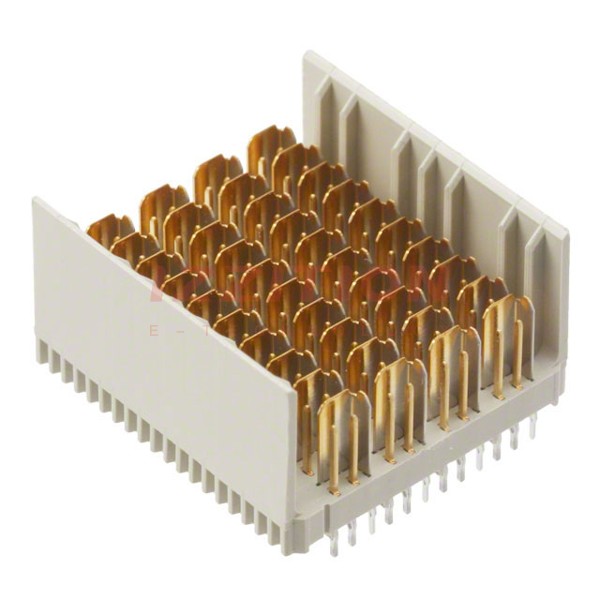

| Part Number | 6469002-1 | 6469602-1 | 6469001-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Active |
| Connector Usage | Backplane | - | Daughtercard |
| Connector Type | Header, Male Pins and Blades | Header, Male Pins | Receptacle, Female Sockets |
| Connector Style | High Speed | - | High Speed |
| Number of Positions | 120 | 29 | 120 |
| Number of Positions Loaded | All | All | All |
| Pitch | 0.098" (2.50mm) | - | 0.098" (2.50mm) |
| Number of Rows | 8 | - | 8 |
| Number of Columns | 10 | - | 10 |
| Mounting Type | Through Hole | Panel Mount, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Solder | Press-Fit |
| Contact Layout, Typical | 80 Single Signal, 40 Ground | 20 Signal, 9 Power | 80 Single Signal, 40 Ground |
| Features | - | - | - |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | - | Black | - |
