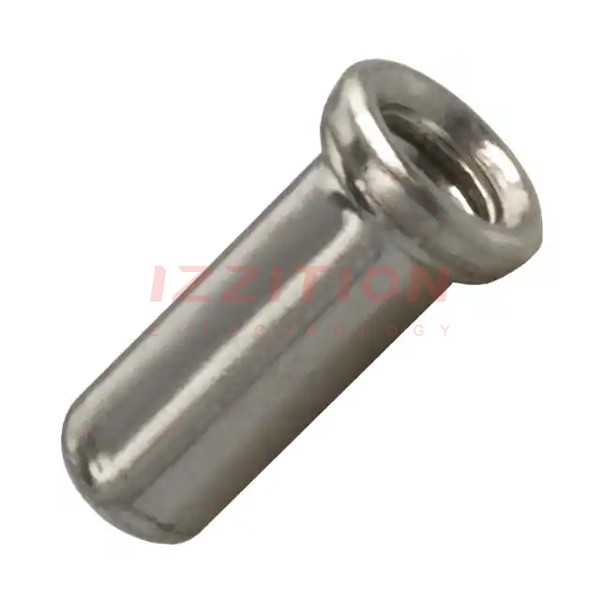

| Part Number | 645945-1 | 645945-2 | 5645945-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Active |
| Tail Type | No Tail | No Tail | No Tail |
| Termination | Solder | Solder | Solder |
| Length - Overall | 0.158" (4.01mm) | 0.158" (4.01mm) | 0.158" (4.01mm) |
| Accepts Pin Diameter | 0.015" ~ 0.021" (0.38mm ~ 0.53mm) | 0.015" ~ 0.021" (0.38mm ~ 0.53mm) | 0.015" ~ 0.021" (0.38mm ~ 0.53mm) |
| Accepts Square Pin Size | - | - | - |
| Pin Hole Diameter | - | - | - |
| Mounting Hole Diameter | 0.043" ~ 0.046" (1.09mm ~ 1.17mm) | 0.043" ~ 0.046" (1.09mm ~ 1.17mm) | 0.043" ~ 0.046" (1.09mm ~ 1.17mm) |
| Flange Diameter | 0.066" (1.68mm) | 0.066" (1.68mm) | 0.066" (1.68mm) |
| Tail Diameter | - | - | - |
| Socket Depth | 0.090" ~ 0.145" (2.29mm ~ 3.68mm) | 0.090" ~ 0.145" (2.29mm ~ 3.68mm) | 0.090" ~ 0.145" (2.29mm ~ 3.68mm) |
| Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper |
| Contact Finish | Tin | Gold | Tin |
| Contact Finish Thickness | 150.0µin (3.81µm) | 30.0µin (0.76µm) | 100.0µin (2.54µm) |
