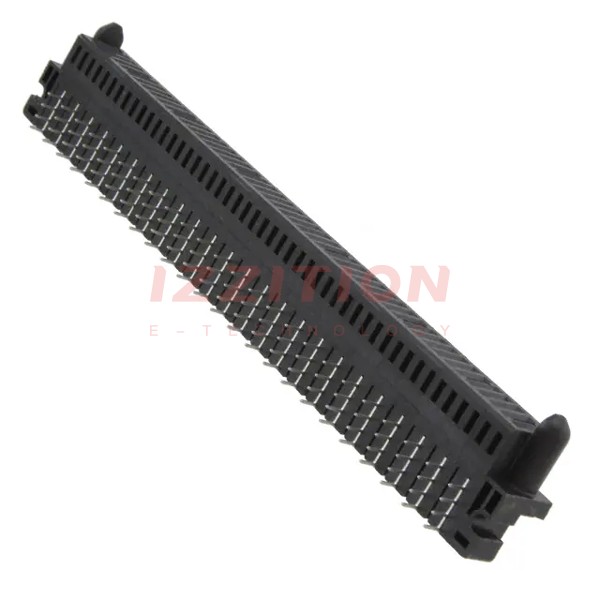

| Part Number | 6450873-2 | 6450833-2 | 6450870-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Usage | - | - | - |
| Connector Type | Receptacle, Female Blade Sockets | Header, Male Pins and Blades | Receptacle, Female Sockets and Blade Sockets |
| Connector Style | Multi-Beam | Multi-Beam | Multi-Beam |
| Number of Positions | 48 | 4 | 26 |
| Number of Positions Loaded | 24 | All | 14 |
| Pitch | - | - | 0.100" (2.54mm) |
| Number of Rows | 1 | - | 4 |
| Number of Columns | - | - | - |
| Mounting Type | Board Edge, Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder |
| Contact Layout, Typical | 48 Power | 4 Power | 24 Signal, 2 Power |
| Features | Guide Pin | Board Lock, Mating Guide | Board Lock, Guide Pin |
| Contact Finish | - | Gold | Gold |
| Contact Finish Thickness | - | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | Black | Black |
