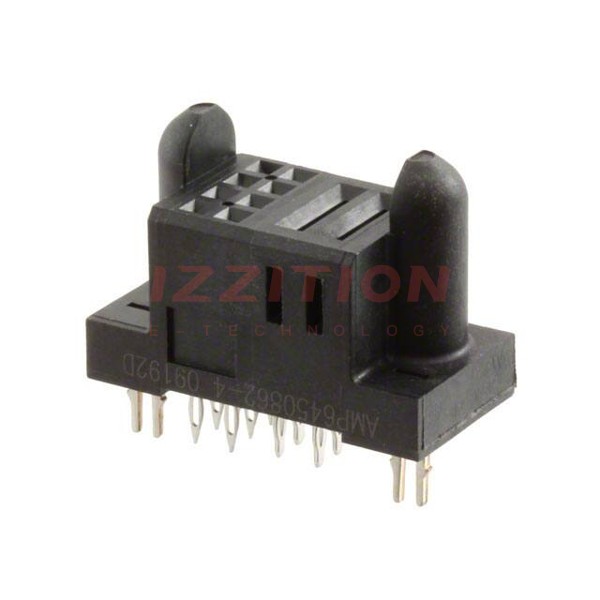

| Part Number | 6450862-4 | 6450842-4 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Usage | - | - |
| Connector Type | Receptacle, Female Sockets and Blade Sockets | Header, Male Pins and Blades |
| Connector Style | Multi-Beam | Multi-Beam |
| Number of Positions | 10 | 37 |
| Number of Positions Loaded | All | All |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 4 | 4 |
| Number of Columns | - | - |
| Mounting Type | Through Hole | Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit |
| Contact Layout, Typical | 8 Signal, 2 Power | 24 Signal, 13 Power |
| Features | Board Lock, Guide Pin | Board Guide, Mating Guide |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | - | Black |
