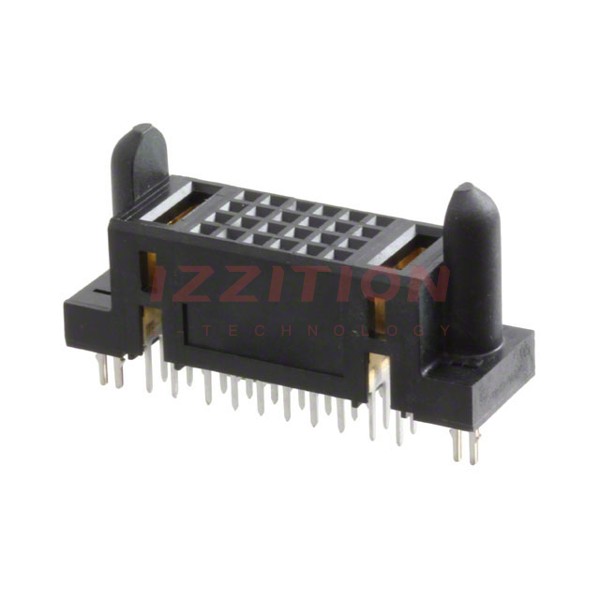

| Part Number | 6450850-3 | 6450150-3 | 6450820-3 | 6450850-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Usage | - | - | - | - |
| Connector Type | Receptacle, Female Sockets and Blade Sockets | Receptacle, Female Sockets and Blade Sockets | Header, Male Pins and Blades | Receptacle, Female Sockets and Blade Sockets |
| Connector Style | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam |
| Number of Positions | 26 | 31 | 38 | 33 |
| Number of Positions Loaded | All | All | All | All |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 4 | 4 | 4 | 4 |
| Number of Columns | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Press-Fit | Solder |
| Contact Layout, Typical | 24 Signal, 2 Power | 24 Signal, 7 Power | 32 Signal, 6 Power | 24 Signal, 9 Power |
| Features | Guide Pin | Board Lock, Guide Pin | Board Lock, Mating Guide | Board Lock, Guide Pin |
| Contact Finish | Gold | Gold | Gold | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | - |
| Color | Black | - | Black | Black |
