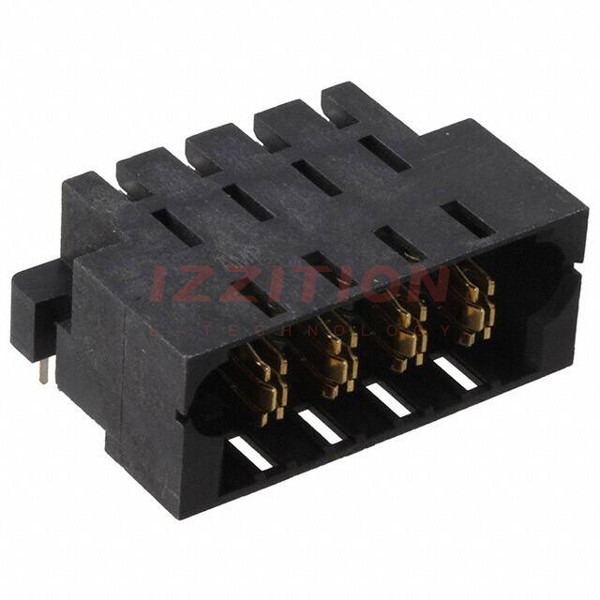

| Part Number | 6450833-2 | 6450833-7 | 6450873-2 | 6450830-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Usage | - | - | - | - |
| Connector Type | Header, Male Pins and Blades | Header, Male Blades | Receptacle, Female Blade Sockets | Header, Male Pins and Blades |
| Connector Style | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam |
| Number of Positions | 4 | 7 | 48 | 33 |
| Number of Positions Loaded | All | All | 24 | All |
| Pitch | - | 0.118" (3.00mm) | - | 0.100" (2.54mm) |
| Number of Rows | - | 1 | 1 | 4 |
| Number of Columns | - | - | - | - |
| Mounting Type | Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder |
| Contact Layout, Typical | 4 Power | 7 Power | 48 Power | 24 Signal, 9 Power |
| Features | Board Lock, Mating Guide | Board Lock, Mating Guide | Guide Pin | Board Lock, Mating Guide |
| Contact Finish | Gold | Gold | - | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | - | - |
| Color | Black | Black | Black | - |
