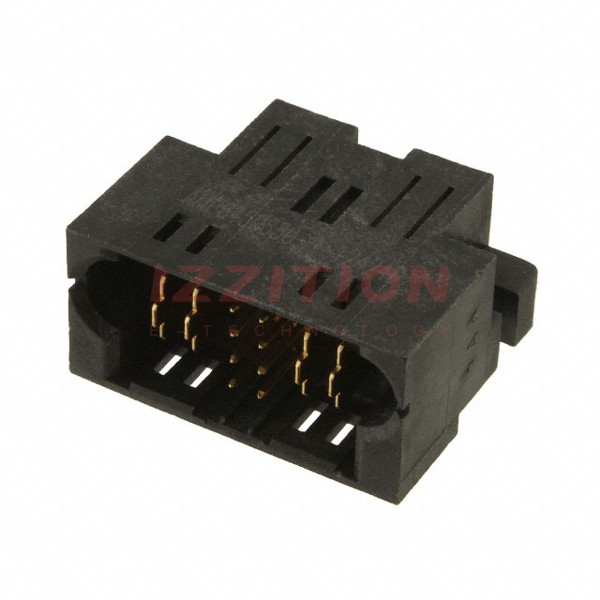

| Part Number | 6450830-1 | 6450880-1 | 6450830-2 | 6450831-1 | 6450860-1 | 6450330-1 | 6450820-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Connector Usage | - | - | - | - | - | - | - |
| Connector Type | Header, Male Pins and Blades | Receptacle, Female Sockets and Blade Sockets | Header, Male Pins and Blades | Header, Male Pins and Blades | Receptacle, Female Sockets and Blade Sockets | Header, Male Pins and Blades | Header, Male Pins and Blades |
| Connector Style | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam |
| Number of Positions | 12 | 33 | 33 | 36 | 12 | 26 | 26 |
| Number of Positions Loaded | All | All | All | All | All | All | All |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of Columns | - | - | - | - | - | - | - |
| Mounting Type | Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole | Through Hole, Right Angle | Through Hole |
| Termination | Solder | Press-Fit, Solder | Solder | Solder | Press-Fit | Solder | Press-Fit |
| Contact Layout, Typical | 8 Signal, 4 Power | 24 Signal, 9 Power | 24 Signal, 9 Power | 32 Signal, 4 Power | 8 Signal, 4 Power | 24 Signal, 2 Power | 24 Signal, 2 Power |
| Features | Mating Guide | Board Lock, Mating Guide | Board Lock, Mating Guide | Board Lock, Mating Guide | Guide Pin | Mating Guide | Board Lock, Mating Guide |
| Contact Finish | - | - | - | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | - | - | - | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | - | - | - | Black | Black | - | Black |
