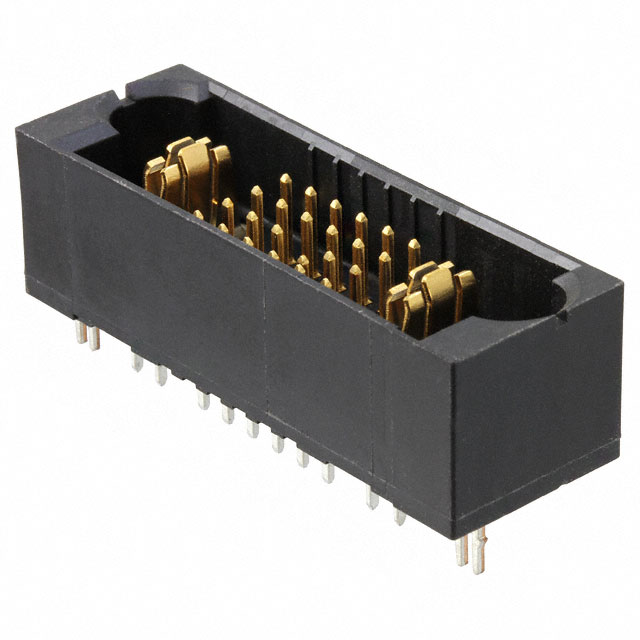

| Part Number | 6450820-1 | 6450830-1 | 6450820-3 | 6450880-1 | 6450823-1 | 6450820-6 | 6450820-2 | 6450820-9 | 6450860-1 | 6450120-1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete |
| Connector Usage | - | - | - | - | - | - | - | - | - | - |
| Connector Type | Header, Male Pins and Blades | Header, Male Pins and Blades | Header, Male Pins and Blades | Receptacle, Female Sockets and Blade Sockets | Header, Male Blades | Header, Male Pins and Blades | Header, Male Pins and Blades | Header, Male Pins and Blades | Receptacle, Female Sockets and Blade Sockets | Header, Male Pins and Blades |
| Connector Style | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam |
| Number of Positions | 26 | 12 | 38 | 33 | 4 | 54 | 26 | 88 | 12 | 48 |
| Number of Positions Loaded | All | All | All | All | All | 47 | All | All | All | All |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | - | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 4 | 4 | 4 | 4 | 1 | 4 | 4 | 4 | 4 | 4 |
| Number of Columns | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole, Right Angle | Through Hole | Board Edge, Through Hole, Right Angle | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole, Right Angle |
| Termination | Press-Fit | Solder | Press-Fit | Press-Fit, Solder | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Solder |
| Contact Layout, Typical | 24 Signal, 2 Power | 8 Signal, 4 Power | 32 Signal, 6 Power | 24 Signal, 9 Power | 4 Power | 40 Signal, 14 Power | 24 Signal, 2 Power | 72 Signal, 16 Power | 8 Signal, 4 Power | 32 Signal, 16 Power |
| Features | Board Lock, Mating Guide | Mating Guide | Board Lock, Mating Guide | Board Lock, Mating Guide | Board Lock, Mating Guide | Board Lock, Mating Guide | Board Lock, Mating Guide | Board Lock, Mating Guide | Guide Pin | Board Lock, Mating Guide |
| Contact Finish | Gold | - | Gold | - | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | - | 30.0µin (0.76µm) | - | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | - | Black | - | Black | Black | Black | Black | Black | - |
