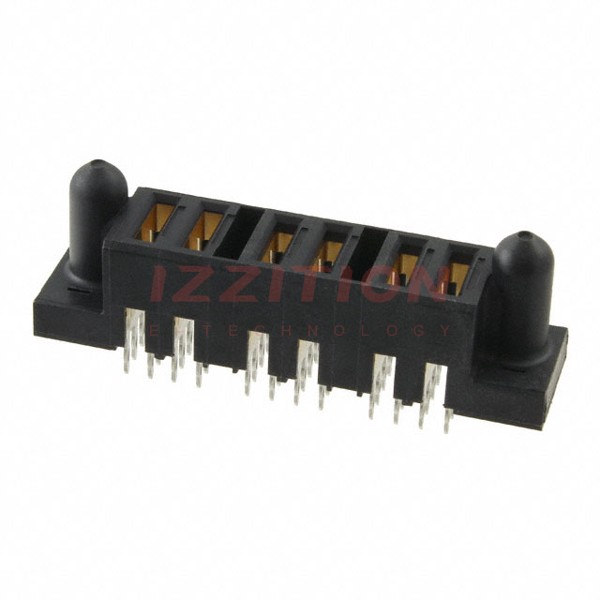

| Part Number | 6450553-2 | 6450523-2 | 6450553-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete |
| Connector Usage | - | - | - |
| Connector Type | Receptacle, Female Blade Sockets | Header, Male Blades | Receptacle, Female Blade Sockets |
| Connector Style | Multi-Beam | Multi-Beam | Multi-Beam |
| Number of Positions | 6 | 6 | 5 |
| Number of Positions Loaded | All | All | All |
| Pitch | - | - | - |
| Number of Rows | 1 | 1 | 1 |
| Number of Columns | - | - | - |
| Mounting Type | Through Hole | Through Hole, Right Angle | Through Hole |
| Termination | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | 6 Power | 6 Power | 5 Power |
| Features | Board Lock, Guide Pin | Mating Guide | Board Lock, Guide Pin |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | - | - | - |
