Please send RFQ , we will respond immediately.

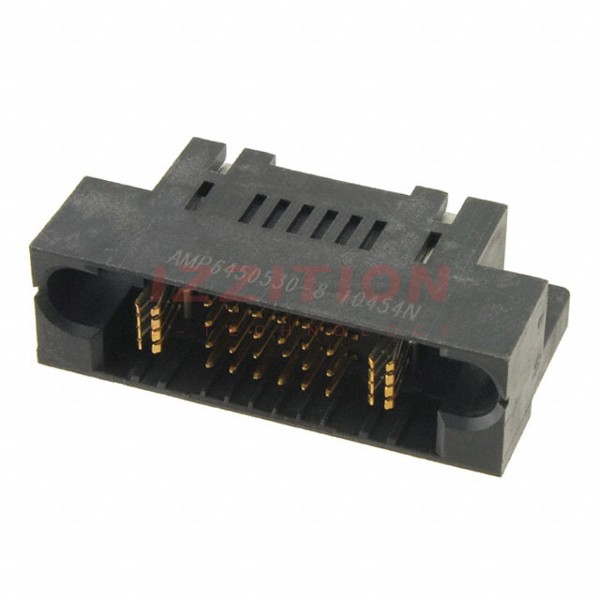

| Part Number | 6450530-8 | 6450530-4 | 6450530-7 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active |
| Connector Usage | - | - | - |
| Connector Type | Header, Male Pins and Blades | Header, Male Pins and Blades | Header, Male Pins and Blades |
| Connector Style | Multi-Beam | Multi-Beam | Multi-Beam |
| Number of Positions | 26 | 28 | 28 |
| Number of Positions Loaded | All | All | All |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 4 | 4 | 4 |
| Number of Columns | - | - | - |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | 24 Signal, 2 Power | 24 Signal, 4 Power | 24 Signal, 4 Power |
| Features | Mating Guide | Board Lock, Mating Guide | Mating Guide |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | - | - | - |
