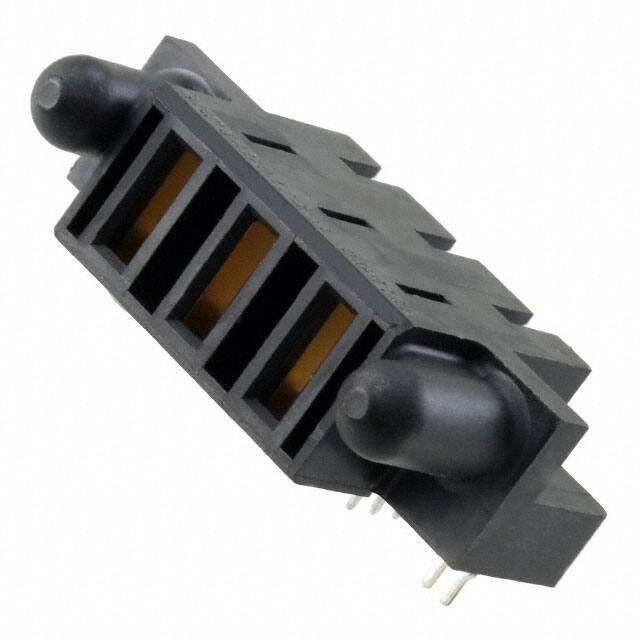

| Part Number | 6450173-1 | 6450123-1 | 6450172-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Active |
| Connector Usage | - | - | - |
| Connector Type | Receptacle, Female Blade Sockets | Header, Male Blades | Receptacle, Female Sockets and Blade Sockets |
| Connector Style | Multi-Beam | Multi-Beam | Multi-Beam |
| Number of Positions | 3 | 3 | 46 |
| Number of Positions Loaded | All | All | All |
| Pitch | - | - | 0.100" (2.54mm) |
| Number of Rows | 1 | 1 | 4 |
| Number of Columns | - | - | - |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder |
| Contact Layout, Typical | 3 Power | 3 Power | 32 Signal, 14 Power |
| Features | Board Lock, Guide Pin | Board Lock, Mating Guide | Board Lock, Guide Pin |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | - | - | - |
