Please send RFQ , we will respond immediately.

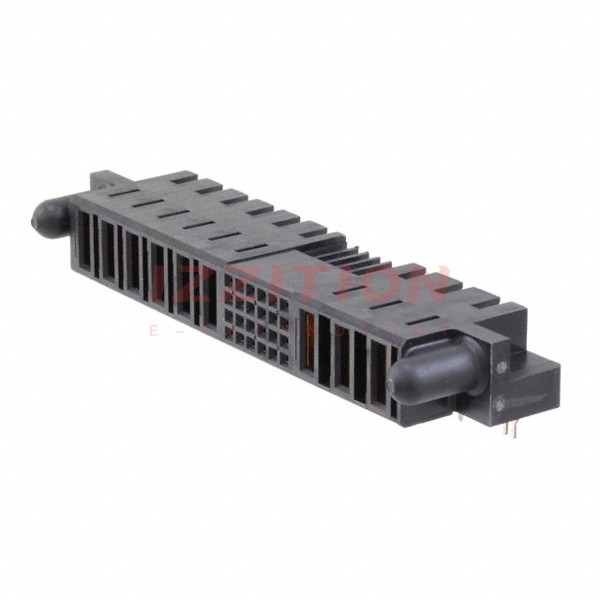

| Part Number | 6450170-8 | 6450870-8 | 6450170-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Usage | - | - | - |
| Connector Type | Receptacle, Female Sockets and Blade Sockets | Receptacle, Female Sockets and Blade Sockets | Receptacle, Female Sockets and Blade Sockets |
| Connector Style | Multi-Beam | Multi-Beam | Multi-Beam |
| Number of Positions | 33 | 30 | 32 |
| Number of Positions Loaded | All | All | All |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 4 | 4 | 4 |
| Number of Columns | - | - | - |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder |
| Contact Layout, Typical | 24 Signal, 9 Power | 24 Signal, 6 Power | 24 Signal, 8 Power |
| Features | Board Lock, Guide Pin | Board Lock, Guide Pin | Board Lock, Guide Pin |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | - | Black | - |
