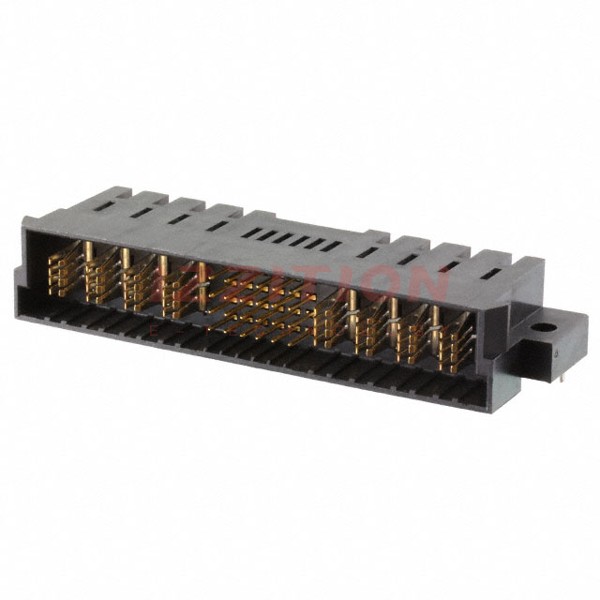

| Part Number | 6450128-5 | 6450528-5 | 6450128-8 | 6450123-5 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Connector Usage | - | - | - | - |
| Connector Type | Header, Male Pins and Blades | Header, Male Pins and Blades | Header, Male Pins and Blades | Header, Male Blades |
| Connector Style | Multi-Beam | Multi-Beam | Multi-Beam | Multi-Beam |
| Number of Positions | 32 | 38 | 36 | 7 |
| Number of Positions Loaded | All | All | All | All |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | - |
| Number of Rows | 4 | 4 | 4 | 1 |
| Number of Columns | - | - | - | - |
| Mounting Type | Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Press-Fit | Solder | Solder |
| Contact Layout, Typical | 24 Signal, 8 Power | 32 Signal, 6 Power | 24 Signal, 12 Power | 7 Power |
| Features | Board Lock, Latches | Board Lock | Board Lock, Latches | Board Lock, Mating Guide |
| Contact Finish | Gold | - | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | - | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | - | - | - | - |
