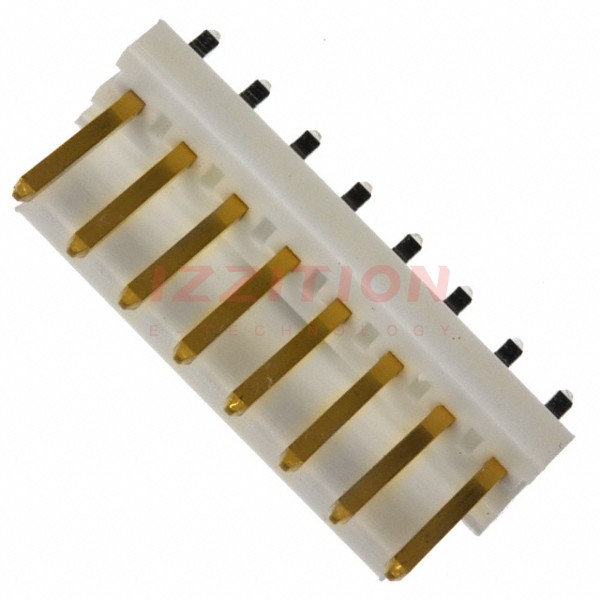

TE Connectivity AMP Connectors 644766-8

Manufacturer No:
644766-8
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
644766-8 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 8POS 3.96MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.156" (3.96mm)
Number of Positions:8
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.400" (10.16mm)
Contact Length - Post:0.175" (4.45mm)
Overall Contact Length:0.700" (17.78mm)
Insulation Height:0.425" (10.80mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin-Lead
Contact Material:Copper Alloy
Insulation Material:Thermoplastic, Glass Filled
Features:-
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:600VAC
0 Remaining View Similar

In Stock

-
200

Please send RFQ , we will respond immediately.
