644694-3
  • Share:

TE Connectivity AMP Connectors 644694-3

Manufacturer No:
644694-3
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
644694-3 Datasheet
ECAD Model:
-
Description:

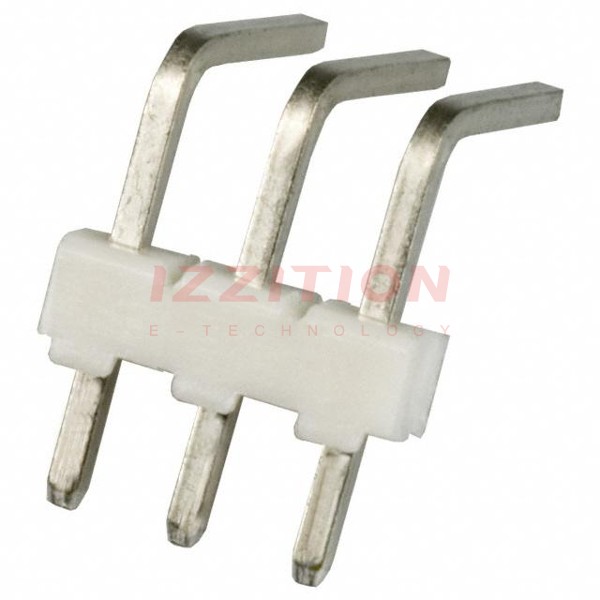

CONN HEADER R/A 3POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Kinked Pin, Solder
Fastening Type:-
Contact Length - Mating:0.260" (6.60mm)
Contact Length - Post:0.110" (2.79mm)
Overall Contact Length:-
Insulation Height:0.100" (2.54mm)
Contact Shape:Square
Contact Finish - Mating:Tin-Lead
Contact Finish Thickness - Mating:150.0µin (3.81µm)
Contact Finish - Post:Tin-Lead
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$0.12
1,250

Please send RFQ , we will respond immediately.

Similar Products

Part Number 644694-3 644695-3   644694-4   644694-5   644694-6   644694-7   644694-8   644694-9   644894-3   644694-2
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Active Obsolete
Connector Type Header Header Header Header Header Header Header Header Header Header
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Number of Positions 3 3 4 5 6 7 8 9 3 2
Number of Rows 1 1 1 1 1 1 1 1 1 1
Row Spacing - Mating - - - - - - - - - -
Number of Positions Loaded All All All All All All All All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Shrouded - 4 Wall Unshrouded
Mounting Type Through Hole, Right Angle Through Hole Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle
Termination Kinked Pin, Solder Kinked Pin, Solder Kinked Pin, Solder Kinked Pin, Solder Kinked Pin, Solder Kinked Pin, Solder Kinked Pin, Solder Kinked Pin, Solder Solder Kinked Pin, Solder
Fastening Type - - - - - - - - Friction Lock -
Contact Length - Mating 0.260" (6.60mm) 0.295" (7.49mm) 0.260" (6.60mm) 0.260" (6.60mm) 0.260" (6.60mm) 0.260" (6.60mm) 0.260" (6.60mm) 0.260" (6.60mm) 0.280" (7.11mm) 0.260" (6.60mm)
Contact Length - Post 0.110" (2.79mm) 0.110" (2.79mm) 0.110" (2.79mm) 0.110" (2.79mm) 0.110" (2.79mm) 0.110" (2.79mm) 0.110" (2.79mm) 0.110" (2.79mm) 0.130" (3.30mm) 0.110" (2.79mm)
Overall Contact Length - 0.505" (12.83mm) - - - - - - - -
Insulation Height 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.313" (7.95mm) 0.100" (2.54mm)
Contact Shape Square Square Square Square Square Square Square Square Square Square
Contact Finish - Mating Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead
Contact Finish Thickness - Mating 150.0µin (3.81µm) 150.0µin (3.81µm) 150.0µin (3.81µm) 150.0µin (3.81µm) 150.0µin (3.81µm) 150.0µin (3.81µm) 150.0µin (3.81µm) 150.0µin (3.81µm) - 150.0µin (3.81µm)
Contact Finish - Post Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead
Contact Material Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy
Insulation Material Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Polyester Thermoplastic
Features - - - - - - - - - -
Operating Temperature -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C
Ingress Protection - - - - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Natural Natural Natural Natural Natural Natural Natural Natural Black Natural
Current Rating (Amps) Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge
Voltage Rating 250VAC 250VAC 250VAC 250VAC 250VAC 250VAC 250VAC 250VAC 250VAC 250VAC
