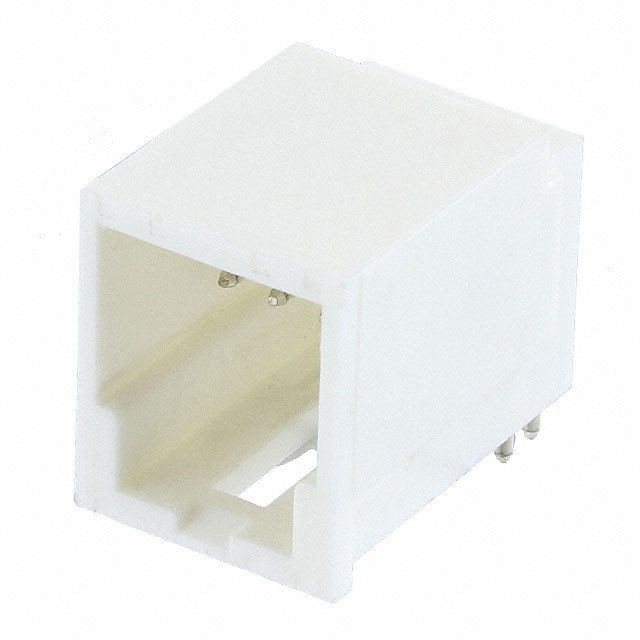

TE Connectivity AMP Connectors-644590-1 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.118" (3.00mm)
Number of Positions:	8
Number of Rows:	2
Row Spacing - Mating:	0.106" (2.69mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	0.280" (7.11mm)
Contact Length - Post:	0.128" (3.25mm)
Overall Contact Length:	-
Insulation Height:	0.713" (18.10mm)
Contact Shape:	Circular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Polybutylene Terephthalate (PBT)
Features:	-
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	-
Voltage Rating:	-

TE Connectivity AMP Connectors 644590-1
