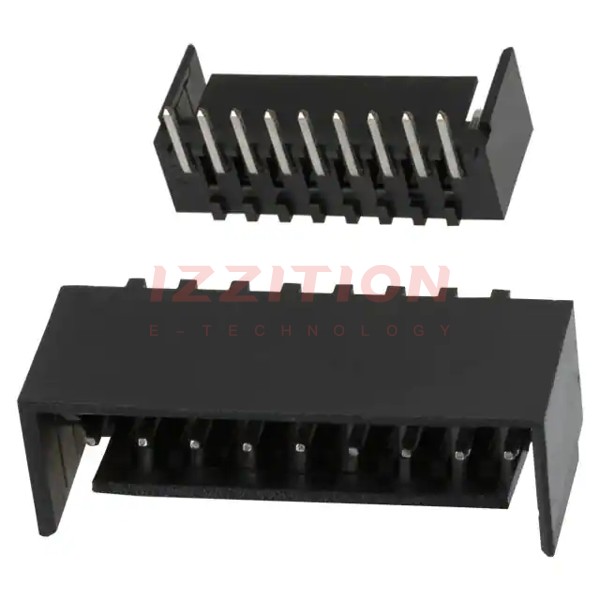

TE Connectivity AMP Connectors 644488-9

Manufacturer No:
644488-9
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
644488-9 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 9POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:9
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.200" (5.08mm)
Contact Length - Post:0.130" (3.30mm)
Overall Contact Length:-
Insulation Height:0.343" (8.71mm)
Contact Shape:Square
Contact Finish - Mating:Tin-Lead
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin-Lead
Contact Material:Copper Alloy
Insulation Material:Polyester
Features:-
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

-
567

Please send RFQ , we will respond immediately.

Similar Products

Part Number 644488-9 644486-9   644488-2   644488-3   644488-4   644488-5   644488-6   644488-7   644488-8
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Connector Type Header Header Header Header Header Header Header Header Header
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Number of Positions 9 9 2 3 4 5 6 7 8
Number of Rows 1 1 1 1 1 1 1 1 1
Row Spacing - Mating - - - - - - - - -
Number of Positions Loaded All All All All All All All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle Through Hole Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle
Termination Solder Solder Solder Solder Solder Solder Solder Solder Solder
Fastening Type Friction Lock Friction Lock Friction Lock Friction Lock Friction Lock Friction Lock Friction Lock Friction Lock Friction Lock
Contact Length - Mating 0.200" (5.08mm) 0.200" (5.08mm) 0.200" (5.08mm) 0.200" (5.08mm) 0.200" (5.08mm) 0.200" (5.08mm) 0.200" (5.08mm) 0.200" (5.08mm) 0.200" (5.08mm)
Contact Length - Post 0.130" (3.30mm) 0.140" (3.56mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm)
Overall Contact Length - 0.440" (11.18mm) - - - - - - -
Insulation Height 0.343" (8.71mm) 0.410" (10.41mm) 0.343" (8.71mm) 0.343" (8.71mm) 0.343" (8.71mm) 0.343" (8.71mm) 0.343" (8.71mm) 0.343" (8.71mm) 0.343" (8.71mm)
Contact Shape Square Square Square Square Square Square Square Square Square
Contact Finish - Mating Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead
Contact Finish Thickness - Mating - - - - - - - - -
Contact Finish - Post Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead
Contact Material Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy
Insulation Material Polyester Polyester Polyester Polyester Polyester Polyester Polyester Polyester Polyester
Features - Board Guide - - - - - - -
Operating Temperature -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C
Ingress Protection - - - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Black Black Black Black Black Black Black Black Black
Current Rating (Amps) Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge
Voltage Rating 250VAC 250VAC 250VAC 250VAC 250VAC 250VAC 250VAC 250VAC 250VAC
