644468-3
  • Share:

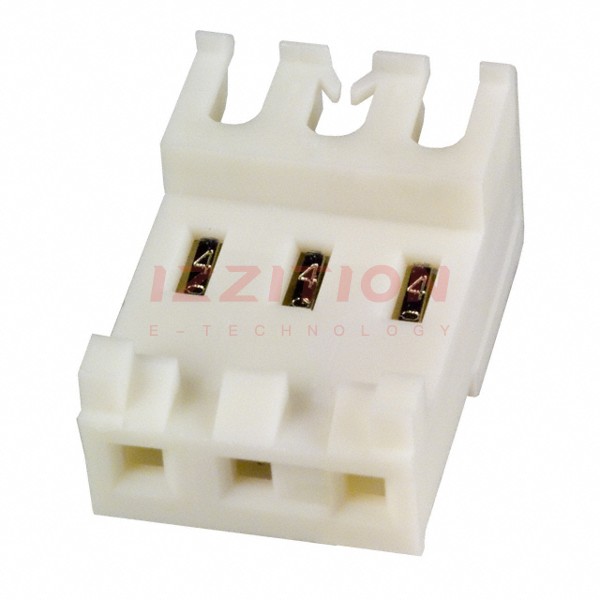

TE Connectivity AMP Connectors 644468-3

Manufacturer No:
644468-3
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
644468-3 Datasheet
ECAD Model:
-
Description:
CONN RCPT 3P IDC 24AWG TIN-LEAD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Number of Positions:3
Pitch:0.156" (3.96mm)
Number of Rows:1
Row Spacing:-
Mounting Type:Free Hanging (In-Line)
Fastening Type:Locking Ramp
Cable Termination:IDC
Wire Type:Discrete or Ribbon Cable
Wire Gauge:24 AWG
Features:Feed Through, Polarizing Key
Contact Finish:Tin-Lead
Contact Finish Thickness:80.0µin (2.03µm)
Color:White
0 Remaining View Similar

In Stock

-
292

Please send RFQ , we will respond immediately.

Similar Products

Part Number 644468-3 644468-4   644469-3   644468-6   644468-5   644468-7   644468-8   644468-9   644461-3   644462-3   644463-3   644464-3   644465-3   644466-3   644467-3   644468-2
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Obsolete Active Obsolete Obsolete Obsolete Obsolete Active Obsolete Obsolete Obsolete Active Obsolete Active Active
Connector Type Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle
Contact Type Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket
Number of Positions 3 4 3 6 5 7 8 9 3 3 3 3 3 3 3 2
Pitch 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm)
Number of Rows 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Row Spacing - - - - - - - - - - - - - - - -
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Fastening Type Locking Ramp Locking Ramp - Locking Ramp Locking Ramp Locking Ramp Locking Ramp Locking Ramp - - - - Locking Ramp Locking Ramp Locking Ramp Locking Ramp
Cable Termination IDC IDC IDC IDC IDC IDC IDC IDC IDC IDC IDC IDC IDC IDC IDC IDC
Wire Type Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable
Wire Gauge 24 AWG 24 AWG 18 AWG 24 AWG 24 AWG 24 AWG 24 AWG 24 AWG 18 AWG 20 AWG 22 AWG 24 AWG 18 AWG 20 AWG 22 AWG 24 AWG
Features Feed Through, Polarizing Key Feed Through, Polarizing Key Feed Through, Polarizing Key Feed Through, Polarizing Key Feed Through, Polarizing Key Feed Through, Polarizing Key Feed Through, Polarizing Key Feed Through, Polarizing Key Closed End, Polarizing Key Closed End, Polarizing Key Closed End, Polarizing Key Closed End, Polarizing Key Feed Through, Polarizing Key Feed Through, Polarizing Key Feed Through, Polarizing Key Feed Through, Polarizing Key
Contact Finish Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead
Contact Finish Thickness 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm)
Color White White Orange White White White White White Orange Yellow Red White Orange Yellow Red White
