Please send RFQ , we will respond immediately.

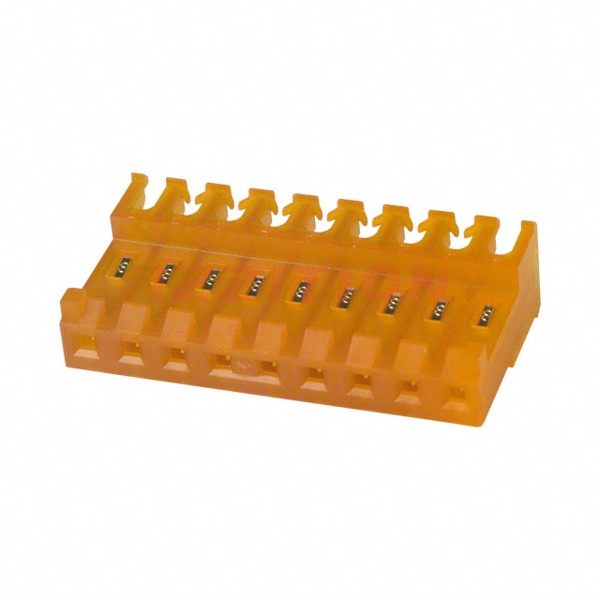

| Part Number | 644465-9 | 644468-9 | 644467-9 | 644466-9 | 644469-9 | 644460-9 | 644461-9 | 644462-9 | 644463-9 | 644464-9 | 644465-2 | 644465-3 | 644465-4 | 644465-5 | 644465-6 | 644465-7 | 644465-8 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Number of Positions | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Pitch | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fastening Type | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | - | Locking Ramp | - | - | - | - | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp |
| Cable Termination | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC |
| Wire Type | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable |
| Wire Gauge | 18 AWG | 24 AWG | 22 AWG | 20 AWG | 18 AWG | 18 AWG | 18 AWG | 20 AWG | 22 AWG | 24 AWG | 18 AWG | 18 AWG | 18 AWG | 18 AWG | 18 AWG | 18 AWG | 18 AWG |
| Features | Feed Through, Polarizing Key | Feed Through, Polarizing Key | Feed Through, Polarizing Key | Feed Through, Polarizing Key | Feed Through, Polarizing Key | Closed End, Polarizing Key | Closed End, Polarizing Key | Closed End, Polarizing Key | Closed End, Polarizing Key | Closed End, Polarizing Key | Feed Through, Polarizing Key | Feed Through, Polarizing Key | Feed Through, Polarizing Key | Feed Through, Polarizing Key | Feed Through, Polarizing Key | Feed Through, Polarizing Key | Feed Through, Polarizing Key |
| Contact Finish | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Gold | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead |
| Contact Finish Thickness | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 30.0µin (0.76µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) |
| Color | Orange | White | Red | Yellow | Orange | Orange | Orange | Yellow | Red | White | Orange | Orange | Orange | Orange | Orange | Orange | Orange |
