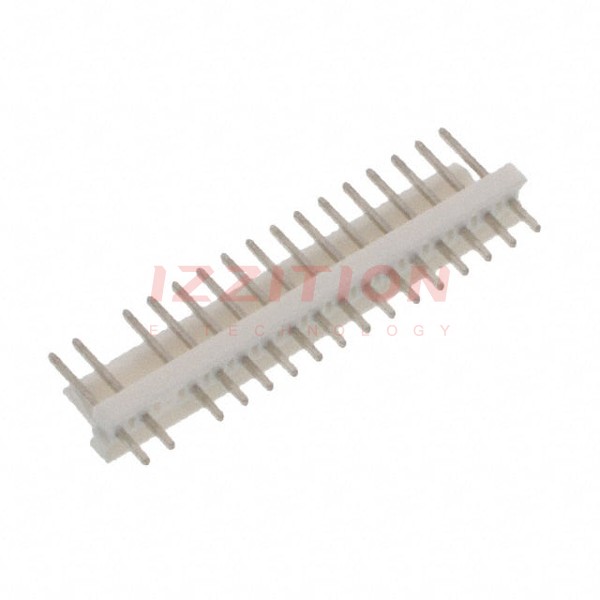

| Part Number | 644211-5 | 644611-5 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) | 0.156" (3.96mm) |
| Number of Positions | 17 | 5 |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Number of Positions Loaded | 16 | All |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Shrouded - 1 Wall |
| Mounting Type | Through Hole | Through Hole |
| Termination | Solder | Solder |
| Fastening Type | Friction Lock | Friction Lock |
| Contact Length - Mating | 0.295" (7.49mm) | 0.450" (11.43mm) |
| Contact Length - Post | 0.140" (3.56mm) | 0.125" (3.18mm) |
| Overall Contact Length | 0.535" (13.59mm) | 0.700" (17.78mm) |
| Insulation Height | 0.305" (7.75mm) | 0.545" (13.84mm) |
| Contact Shape | Square | Square |
| Contact Finish - Mating | Tin | Tin-Lead |
| Contact Finish Thickness - Mating | - | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin | Tin-Lead |
| Contact Material | Copper Alloy | Copper Alloy |
| Insulation Material | Thermoplastic | Thermoplastic, Glass Filled |
| Features | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Natural | Natural |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Voltage Rating | 250VAC | 600VAC |
