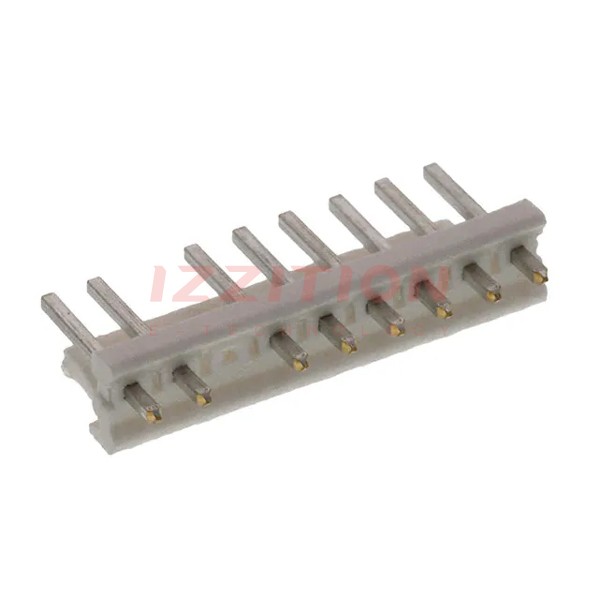

TE Connectivity AMP Connectors 644168-1

Manufacturer No:
644168-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
644168-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 9POS 3.96MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.156" (3.96mm)
Number of Positions:9
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:8
Style:Board to Cable/Wire
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.400" (10.16mm)
Contact Length - Post:0.125" (3.18mm)
Overall Contact Length:0.650" (16.51mm)
Insulation Height:0.425" (10.80mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic, Glass Filled
Features:-
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:600VAC
0 Remaining View Similar

In Stock

$0.70
104

Please send RFQ , we will respond immediately.
