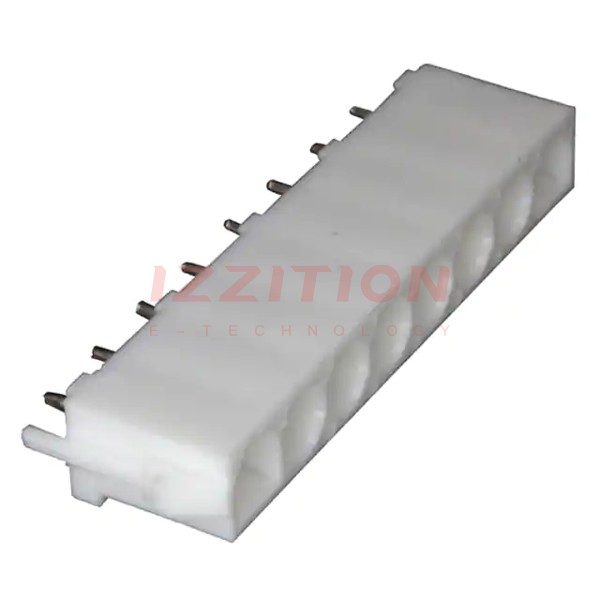

| Part Number | 643410-1 | 643410-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Number of Positions | 8 | 8 |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Number of Positions Loaded | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole |
| Termination | Solder | Solder |
| Fastening Type | Locking Ramp | Locking Ramp |
| Contact Length - Mating | - | - |
| Contact Length - Post | 0.155" (3.94mm) | 0.155" (3.94mm) |
| Overall Contact Length | - | - |
| Insulation Height | 0.550" (13.97mm) | 0.550" (13.97mm) |
| Contact Shape | Circular | Circular |
| Contact Finish - Mating | Tin | Gold |
| Contact Finish Thickness - Mating | - | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Tin-Lead |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Features | Board Guide | Board Guide |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | White | White |
| Current Rating (Amps) | 12A | 12A |
| Voltage Rating | 600VAC | 600VAC |
