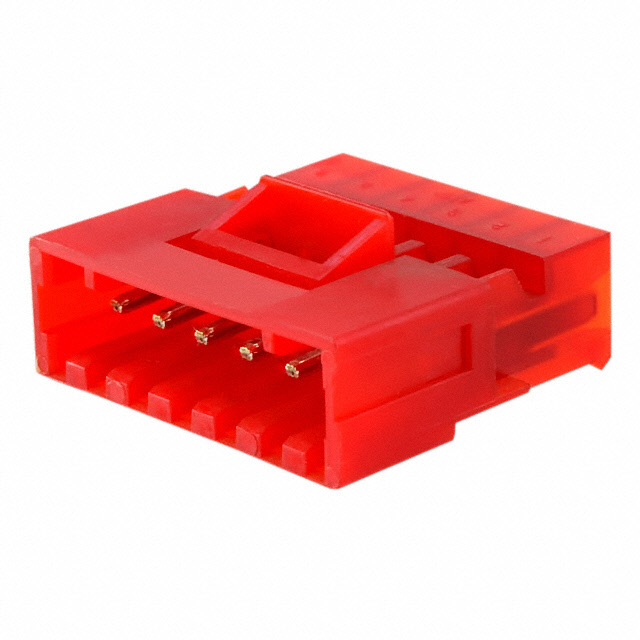

| Part Number | 641437-6 | 641237-6 | 641436-6 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Active |
| Connector Type | Plug | Receptacle | Plug |
| Contact Type | Male Pin | Female Socket | Male Pin |
| Number of Positions | 6 | 6 | 6 |
| Pitch | 0.156" (3.96mm) | 0.100" (2.54mm) | 0.156" (3.96mm) |
| Number of Rows | 1 | 1 | 1 |
| Row Spacing | - | - | - |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Fastening Type | - | Locking Ramp | - |
| Cable Termination | IDC | IDC | IDC |
| Wire Type | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable |
| Wire Gauge | 22 AWG | 22 AWG | 20 AWG |
| Features | Closed End | Closed End | Closed End |
| Contact Finish | Tin-Lead | Gold | Tin-Lead |
| Contact Finish Thickness | 80.0µin (2.03µm) | 30.0µin (0.76µm) | 80.0µin (2.03µm) |
| Color | Red | Red | Yellow |
