Please send RFQ , we will respond immediately.

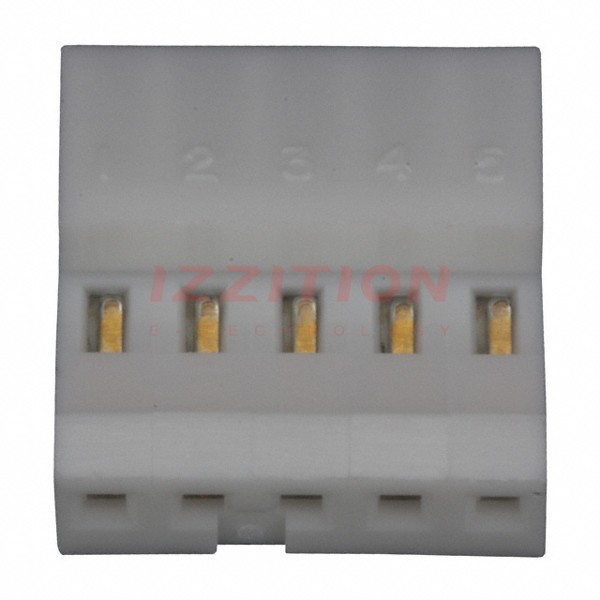

| Part Number | 641238-5 | 641239-5 | 641238-6 | 641238-7 | 641238-8 | 641237-5 | 641238-2 | 641238-3 | 641238-4 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Number of Positions | 5 | 5 | 6 | 7 | 8 | 5 | 2 | 3 | 4 |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing | - | - | - | - | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Fastening Type | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp |
| Cable Termination | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC |
| Wire Type | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable |
| Wire Gauge | 24 AWG | 26 AWG | 24 AWG | 24 AWG | 24 AWG | 22 AWG | 24 AWG | 24 AWG | 24 AWG |
| Features | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | White | Blue | White | White | White | Red | White | White | White |
