TE Connectivity AMP Connectors-640504-1 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Part Number	640504-1	640584-1	640505-1	640506-1	640504-3	640504-4	640504-2	640500-1	640501-1	640502-1	640503-1
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
Connector Type	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.165" (4.20mm)	0.250" (6.35mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)
Number of Positions	20	8	24	36	20	20	20	6	9	12	15
Number of Rows	4	1	4	4	4	4	4	2	3	3	3
Row Spacing - Mating	0.165" (4.20mm)	-	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)
Number of Positions Loaded	All	All	All	All	All	All	All	All	All	All	All
Style	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Mounting Type	Through Hole	Through Hole, Right Angle	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Latch Lock	Locking Ramp	Latch Lock	Latch Lock	Latch Lock	Latch Lock	Latch Lock	Latch Lock	Latch Lock	Latch Lock	Latch Lock
Contact Length - Mating	0.220" (5.59mm)	-	0.220" (5.59mm)	0.220" (5.59mm)	0.220" (5.59mm)	0.220" (5.59mm)	0.220" (5.59mm)	0.220" (5.59mm)	0.220" (5.59mm)	0.220" (5.59mm)	0.220" (5.59mm)
Contact Length - Post	0.150" (3.81mm)	0.160" (4.06mm)	0.150" (3.81mm)	0.150" (3.81mm)	0.210" (5.33mm)	0.210" (5.33mm)	0.150" (3.81mm)	0.150" (3.81mm)	0.150" (3.81mm)	0.150" (3.81mm)	0.150" (3.81mm)
Overall Contact Length	-	-	-	-	-	-	-	-	-	-	-
Insulation Height	0.531" (13.50mm)	0.360" (9.14mm)	0.531" (13.50mm)	0.531" (13.50mm)	0.531" (13.50mm)	0.531" (13.50mm)	0.531" (13.50mm)	0.531" (13.50mm)	0.531" (13.50mm)	0.531" (13.50mm)	0.531" (13.50mm)
Contact Shape	Circular	Circular	Circular	Circular	Circular	Circular	Circular	Circular	Circular	Circular	Circular
Contact Finish - Mating	Tin	Tin	Tin	Tin	Tin	Gold	Gold	Tin	Tin	Tin	Tin
Contact Finish Thickness - Mating	-	-	-	-	-	30.0µin (0.76µm)	30.0µin (0.76µm)	-	-	-	-
Contact Finish - Post	Tin	Tin	Tin	Tin	Tin	Tin-Lead	Tin-Lead	Tin	Tin	Tin	Tin
Contact Material	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Features	-	Mounting Flange	-	-	-	-	-	-	-	-	-
Operating Temperature	-55°C ~ 105°C	-40°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Ingress Protection	-	-	-	-	-	-	-	-	-	-	-
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Black, Red	White	Black, Red	Black, Red	Black, Red	Black, Red	Black, Red	Black, Red	Black, Red	Black, Red	Black, Red
Current Rating (Amps)	6A	12A	6A	6A	6A	6A	6A	6A	6A	6A	6A
Voltage Rating	250VAC	600VAC	250VAC	250VAC	250VAC	250VAC	250VAC	250VAC	250VAC	250VAC	250VAC

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.165" (4.20mm)
Number of Positions:	20
Number of Rows:	4
Row Spacing - Mating:	0.165" (4.20mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Lock
Contact Length - Mating:	0.220" (5.59mm)
Contact Length - Post:	0.150" (3.81mm)
Overall Contact Length:	-
Insulation Height:	0.531" (13.50mm)
Contact Shape:	Circular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Polyamide (PA), Nylon
Features:	-
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black, Red
Current Rating (Amps):	6A
Voltage Rating:	250VAC

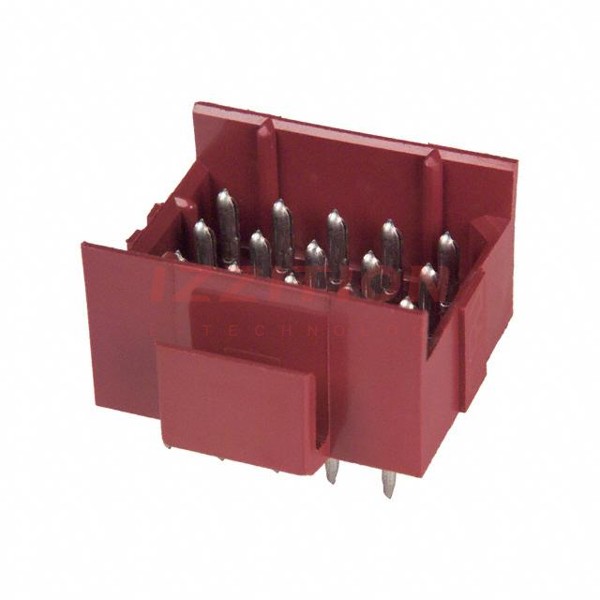

TE Connectivity AMP Connectors 640504-1

Product Attributes

In Stock
