TE Connectivity AMP Connectors-640455-5 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Part Number	640455-5	640456-5	640455-8	640455-7	640457-5	640455-9	640455-6	640445-5	640452-5	640453-5	640454-5	640455-2	640455-3	640455-4
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
Connector Type	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.156" (3.96mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	5	5	8	7	5	9	6	5	5	5	5	2	3	4
Number of Rows	1	1	1	1	1	1	1	1	1	1	1	1	1	1
Row Spacing - Mating	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Number of Positions Loaded	All	All	All	All	All	All	All	All	All	All	All	All	All	All
Style	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire
Shrouding	Shrouded - 1 Wall	Shrouded - 1 Wall	Shrouded - 1 Wall	Shrouded - 1 Wall	Shrouded - 1 Wall	Shrouded - 1 Wall	Shrouded - 1 Wall	Shrouded - 1 Wall	Unshrouded	Unshrouded	Shrouded - 1 Wall	Shrouded - 1 Wall	Shrouded - 1 Wall	Shrouded - 1 Wall
Mounting Type	Through Hole, Right Angle	Through Hole	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole	Through Hole	Through Hole, Right Angle	Through Hole	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	-	Friction Lock	-	-	Friction Lock	-	-	Friction Lock	-	-	-	-	-	-
Contact Length - Mating	0.295" (7.49mm)	0.295" (7.49mm)	0.295" (7.49mm)	0.295" (7.49mm)	0.295" (7.49mm)	0.295" (7.49mm)	0.295" (7.49mm)	0.400" (10.16mm)	0.295" (7.49mm)	0.295" (7.49mm)	0.295" (7.49mm)	0.295" (7.49mm)	0.295" (7.49mm)	0.295" (7.49mm)
Contact Length - Post	0.140" (3.56mm)	0.140" (3.56mm)	0.140" (3.56mm)	0.140" (3.56mm)	0.140" (3.56mm)	0.140" (3.56mm)	0.140" (3.56mm)	0.125" (3.18mm)	0.140" (3.56mm)	0.140" (3.56mm)	0.140" (3.56mm)	0.140" (3.56mm)	0.140" (3.56mm)	0.140" (3.56mm)
Overall Contact Length	-	0.535" (13.59mm)	-	-	-	-	-	0.650" (16.51mm)	0.535" (13.59mm)	-	0.535" (13.59mm)	-	-	-
Insulation Height	0.225" (5.72mm)	0.305" (7.75mm)	0.225" (5.72mm)	0.225" (5.72mm)	0.225" (5.72mm)	0.225" (5.72mm)	0.225" (5.72mm)	0.425" (10.80mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.305" (7.75mm)	0.225" (5.72mm)	0.225" (5.72mm)	0.225" (5.72mm)
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square
Contact Finish - Mating	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin
Contact Finish Thickness - Mating	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Contact Finish - Post	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin
Contact Material	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy
Insulation Material	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic, Glass Filled	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic
Features	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Ingress Protection	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Natural	Natural	Natural	Natural	Natural	Natural	Natural	Natural	Natural	Natural	Natural	Natural	Natural	Natural
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge
Voltage Rating	250VAC	250VAC	250VAC	250VAC	250VAC	250VAC	250VAC	600VAC	250VAC	250VAC	250VAC	250VAC	250VAC	250VAC

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	5
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 1 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	-
Contact Length - Mating:	0.295" (7.49mm)
Contact Length - Post:	0.140" (3.56mm)
Overall Contact Length:	-
Insulation Height:	0.225" (5.72mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Thermoplastic
Features:	-
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	Varies by Wire Gauge
Voltage Rating:	250VAC

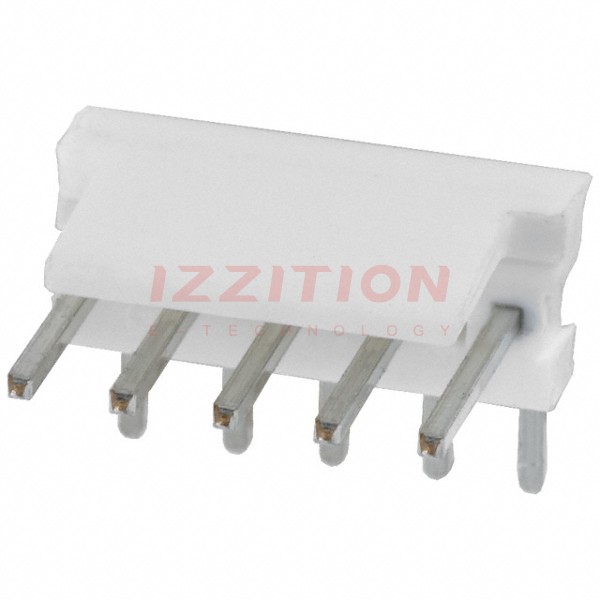

TE Connectivity AMP Connectors 640455-5

Product Attributes

In Stock

Similar Products

Related Product By Categories
