Please send RFQ , we will respond immediately.

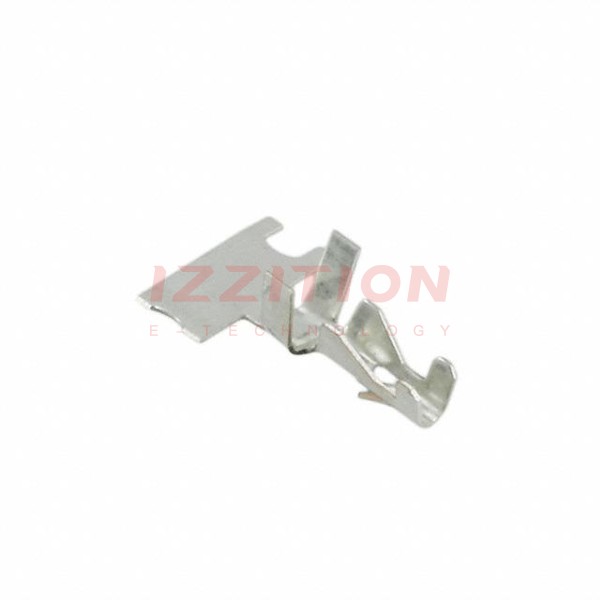

| Part Number | 640311-1 | 640311-5 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active |
| Terminal Type | Through Board, Locking | Through Board, Locking |
| Hole Diameter | 0.072" ~ 0.077" (1.83mm ~ 1.96mm) | 0.072" ~ 0.077" (1.83mm ~ 1.96mm) |
| Insulation Diameter | 0.060" ~ 0.110" (1.52mm ~ 2.79mm) | 0.060" ~ 0.110" (1.52mm ~ 2.79mm) |
| Length - Overall | 0.260" (6.60mm) | 0.260" (6.60mm) |
| Wire Gauge | 18-22 AWG | 18-22 AWG |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Tin-Lead | Tin |
