Please send RFQ , we will respond immediately.

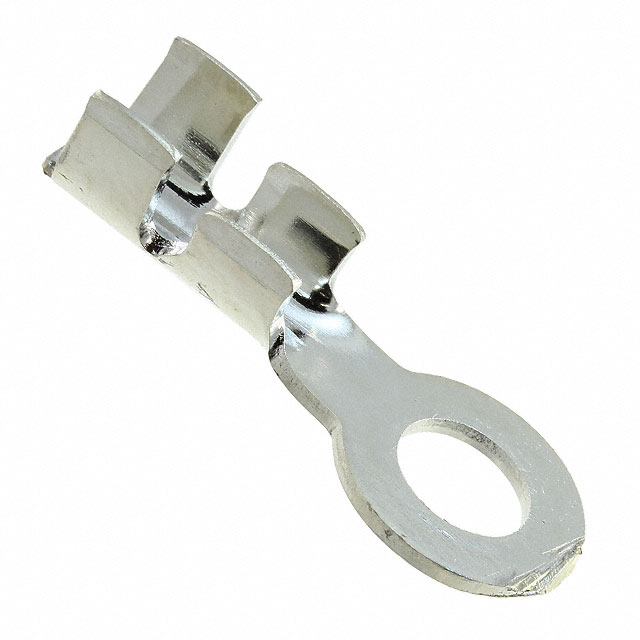

| Part Number | 640007-1 | 640007-3 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active |
| Terminal Type | Circular | Circular |
| Stud/Tab Size | 10 Stud | 10 Stud |
| Thickness | 0.030" (0.76mm) | 0.030" (0.76mm) |
| Width - Outer Edges | 0.375" (9.53mm) | 0.375" (9.53mm) |
| Length - Overall | 0.873" (22.17mm) | 0.873" (22.17mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp |
| Wire Gauge | 14-16 AWG | 14-16 AWG |
| Insulation | Non-Insulated | Non-Insulated |
| Features | - | - |
| Color | - | - |
| Contact Material | Brass | Brass |
| Contact Finish | Tin | Tin |
