Please send RFQ , we will respond immediately.

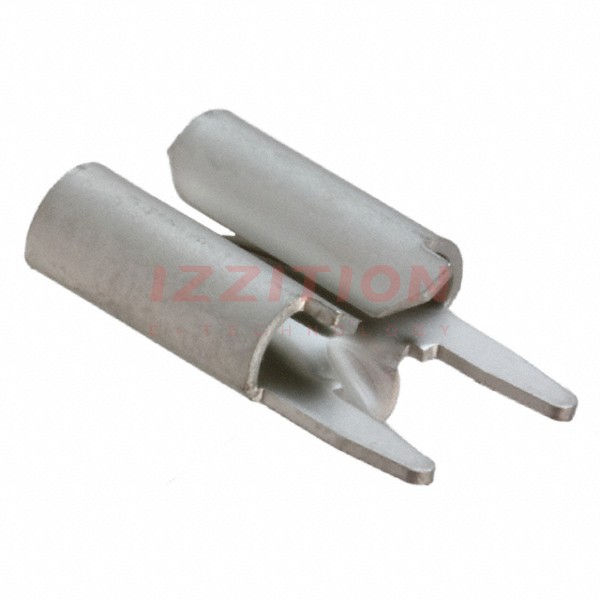

| Part Number | 63994-1 | 63944-1 | 63954-1 | 63990-1 | 63993-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Angled - 90°, Flag | Standard | Angled - 90°, Flag | Standard |
| Gender | Female | Female | Female | Female | Female |
| Tab Width | 0.205" (5.21mm), 0.250" (6.35mm) | 0.250" (6.35mm) | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.025" (0.64mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.015" (0.38mm) | 0.020" (0.51mm) |
| Tab Length | 0.330" (8.38mm) | 0.305" (7.75mm) | 0.250" (6.35mm) | - | 0.305" (7.75mm) |
| Length - Overall | 0.480" (12.19mm) | - | 0.635" (16.13mm) | - | - |
| Termination | Solder | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | - | 12-16 AWG | 18-22 AWG | 16-22 AWG | 14-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Through Hole | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) |
| Features | - | - | - | - | - |
| Color | - | - | - | - | - |
| Contact Material | Brass | Phosphor Bronze | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin | Tin |
