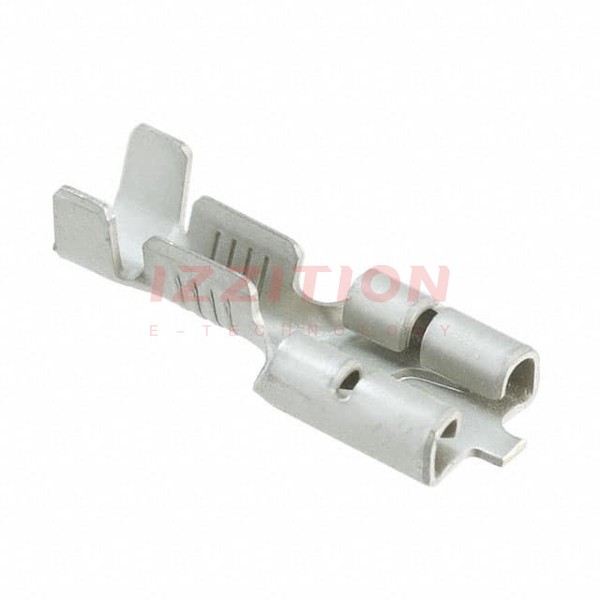

| Part Number | 63993-1 | 63994-1 | 63693-1 | 63933-1 | 63953-1 | 63963-1 | 63990-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard | Angled - 90°, Flag | Angled - 90°, Flag |
| Gender | Female | Female | Female | Female | Male | Female | Female |
| Tab Width | 0.250" (6.35mm) | 0.205" (5.21mm), 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.025" (0.64mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.016" (0.41mm) | 0.032" (0.81mm) | 0.015" (0.38mm) |
| Tab Length | 0.305" (7.75mm) | 0.330" (8.38mm) | 0.305" (7.75mm) | 0.293" (7.44mm) | - | 0.240" (6.10mm) | - |
| Length - Overall | - | 0.480" (12.19mm) | - | 0.771" (19.58mm) | - | - | - |
| Termination | Crimp | Solder | Crimp | Crimp | Weld | Crimp | Crimp |
| Wire Gauge | 14-18 AWG | - | 18-22 AWG | 18-22 AWG | - | 14-18 AWG | 16-22 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line) | Board, Chassis | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Features | - | - | - | - | - | - | - |
| Color | - | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Steel | Steel | Brass |
| Contact Finish | Tin | Tin | - | - | - | Nickel | Tin |
